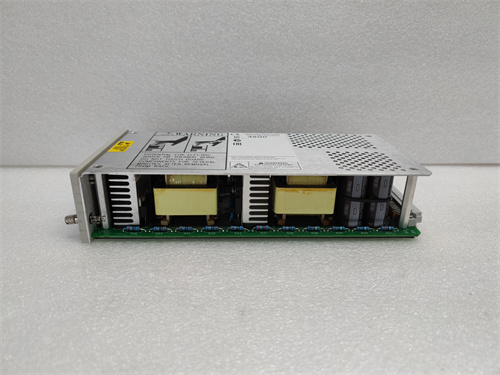

BENTLY 3500/15 Detailed Introduction

The BENTLY 3500/15 power module is a half-height module that must be installed in the designated slot on the left side of the rack.As the power module of Bently Nevada’s machinery condition monitoring system,it is used to provide the required power for the monitoring system and ensure the stable operation of the monitoring system.

Main Functions

The main function of this power module is to convert the input AC voltage into an acceptable DC voltage to power other 3500 modules.It can accept a wide range of inputs and convert them into the voltage required by the 3500 modules.In addition,the module also has functions such as power stability,power overload protection,and power fault detection.

Product Features

Compatibility:The BENTLY 3500/15 power module is highly compatible with Bently Nevada’s 3500 series machinery protection system and can be easily integrated into the entire monitoring system.At the same time,it also supports connection with equipment and systems of other brands to provide flexible monitoring solutions.

Redundant design:In the 3500 rack,one or two power supplies of any combination of AC and DC can be accommodated.When two power supplies are installed in the rack,one in the bottom slot is used as the main power supply,and one in the higher slot is used as the backup power supply.As long as the second power supply is installed,removing or inserting either power module will not affect the operation of the rack.

Easy maintenance and upgrade:The design of the BENTLY 3500/15 power supply module takes into account the needs of easy maintenance and upgrade.Users can replace or upgrade the module through simple operations to ensure the continuous operation and performance improvement of the system.

Application field

The BENTLY 3500/15 power supply module is widely used in vibration monitoring and protection of various rotating mechanical equipment,including but not limited to steam turbines,water turbines,fans,compressors,turbo expanders,motors and generators.By monitoring the vibration of the equipment in real time,users can promptly detect potential faults and problems and take appropriate measures to repair and prevent them,thereby ensuring the stable operation of the equipment and the safe production.

Product Specifications

The dimensions of the BENTLY 3500/15 power module are typically 120.7mm x 50.8mm x 251.5mm(H x W x D)and weigh approximately 1.39kg.In addition,the module also has specific input voltage requirements,such as the AC input voltage range is typically 110 to 220Vac(or 85 to 264Vac RMS),and the DC input voltage range is 20 to 30Vdc.
