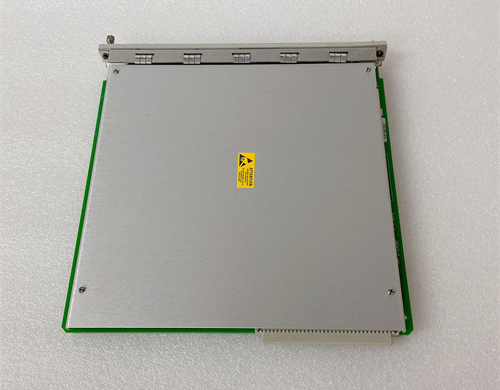

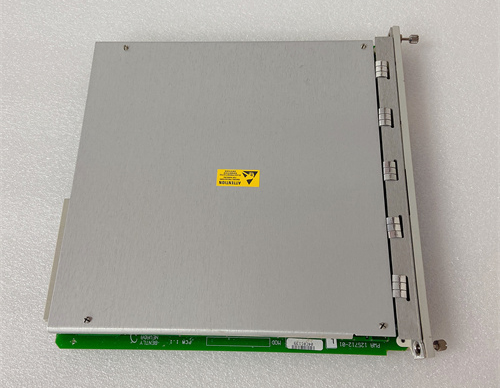

BENTLY 3500/32 125712-01 Product Overview

BENTLY 3500/32 125712-01 is a 4-channel relay module manufactured by Bently Nevada.The following is a detailed introduction to the module.

Product Overview

Brand:Bently Nevada

Model:3500/32 125712-01

Type:4-channel relay module

Main features

Four-channel design

The module has four independent relay outputs,each of which can be configured individually to meet the required voting logic.

Relay type

The double-pole double-throw(DPDT)arrangement of two single-pole double-throw(SPDT)relays provides flexible and diverse connection methods.

Electrical isolation

All interfaces have electrical isolation function,which effectively improves the safety and stability of the system.

Working environment

The operating temperature range is-30 degrees Celsius to+65 degrees Celsius,and the storage temperature range is-40 degrees Celsius to+85 degrees Celsius.

The humidity requirement is 95%(no condensation),which can adapt to a variety of harsh working environments.

Indicator

Equipped with an OK LED indicator,which lights up when the module is working normally.

The TX/RX LED indicator is used to indicate the sending and receiving status.Flashing indicates that the module is communicating normally with other modules in the rack.

When the relay channel is in alarm state,the CH ALARM LED will light up.

Advanced diagnostic function

The module is equipped with a series of sensors and diagnostic functions to detect the operating status of the system in real time,and promptly discover and deal with potential problems.

Easy to integrate and maintain

The module can be easily integrated into Bently Nevada’s 3500 series control system.

Support remote configuration and monitoring,which is convenient for users to manage and adjust the system anytime and anywhere.

Application scenario

BENTLY 3500/32 125712-01 module is widely used in various industrial automation systems,such as power generation,chemical,petroleum,water treatment and other fields.It can be used as a power switch module,data acquisition module or communication module to provide stable and reliable power supply,data acquisition and communication support for the system.
