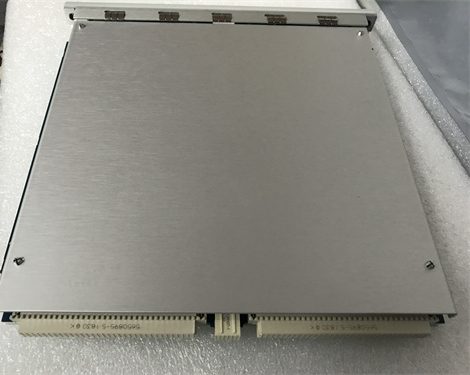

BENTLY 3500 22-01-01-00 Product Introduction

The 3500/22-01-01-00 module is the key interface between the 3500 monitoring system and compatible software.It is responsible for data transmission and interface functions,enabling the 3500 monitoring system to efficiently exchange data and communicate with upper-level software.

Main Features

Data transmission capability

The module can transmit steady-state and transient waveform data to the host software via an Ethernet link,supporting static data capture and dynamic high-resolution transient data acquisition.

Compatibility

The 3500/22-01-01-00 module is highly compatible with the 3500 monitoring system and System 1 status monitoring and diagnostic software,and is suitable for various monitoring and diagnostic needs.

Hardware Configuration

The module supports USB-B front panel,which is convenient for users to connect and operate.

Provides 10Base-T or 100Base-TX Ethernet interfaces,as well as 100Base-FX fiber-optic Ethernet interfaces to meet different network connection requirements.

Equipped with a rack reset button and data LED indicators before and after the alarm,it is convenient for users to perform troubleshooting and status monitoring.

Functional integration

Combines the functions of the 3500/20 rack interface module(RIM)and the data collection capabilities of communication processors such as TDXnet to achieve efficient data transmission and processing.

Installation location

In the 3500 rack,the TDI is located in the slot adjacent to the power supply,usually occupying slot 1.

Non-critical components

Although the TDI provides certain functions common to the entire rack,it is not part of the critical monitoring path and does not affect the correct and normal operation of the overall monitoring system for automatic machinery protection.

Application areas

The 3500/22-01-01-00 module is widely used in various scenarios requiring status monitoring and data analysis,especially in industrial fields such as power,petrochemical,papermaking,and steel.It continuously monitors the operating status of rotating and reciprocating machinery,providing critical operating data to help prevent equipment failure and maintenance.
