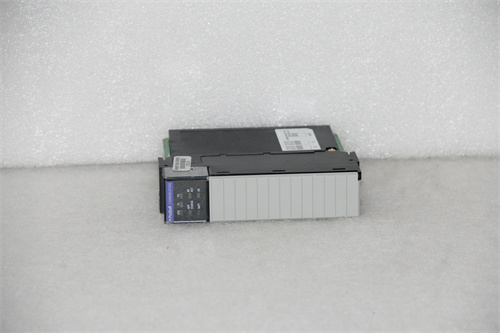

PROSOFT MVI56-MCM Product Introduction

PROSOFT MVI56-MCM is a Modbus communication module for Rockwell Automation ControlLogix platform produced by ProSoft Technology.It is mainly used to establish serial communication between ControlLogix PLC(Programmable Logic Controller)and devices supporting Modbus protocol to achieve data exchange and control.

Main features and functions

Modbus protocol conversion

Convert the instructions and data of ControlLogix PLC into Modbus protocol to achieve seamless communication with Modbus devices.

Serial communication

Provide RS-232 and RS-485 serial port interfaces,which can be connected to various serial devices.

Flexible configuration

Communication parameters,data format,etc.can be easily set through the configuration software to meet the different needs of users.

High-speed performance

With high-speed communication capability,efficient data transmission between ControlLogix PLC and Modbus devices is achieved.

Redundancy support

Supports redundant configuration to improve system reliability.When the primary path fails,the backup communication path automatically starts,ensuring continuous operation and minimizing downtime.

Diagnostics and status monitoring

Provides diagnostics and status monitoring functions,allowing users to check the communication status in real time,detect communication errors,and solve any problems during operation.

Data acquisition and remote control

Data can be collected from multiple Modbus devices and transmitted to the PLC for processing.At the same time,the connected Modbus devices are remotely controlled through the PLC.

Flexible address mapping

The data of ControlLogix can be mapped to the registers of the Modbus device,which facilitates the reading,writing and exchange of data.

Supports multiple Modbus functions

Supports Modbus RTU and Modbus ASCII protocols,suitable for different application scenarios.

Application fields

The PROSOFT MVI56-MCM communication module is widely used in the field of industrial automation,especially in data acquisition,remote control and key industry applications.It can connect sensors,instruments and other equipment,collect field data,and transmit data to the central control system or monitoring platform for processing and display.In addition,PROSOFT MVI56-MCM communication module is also widely used in water treatment,power,oil and gas industries.

Technical parameters

Communication interface:RS-232 and RS-485

Data rate:supports multiple baud rates

Data format:supports Modbus RTU and Modbus ASCII

Power supply voltage:24V DC
