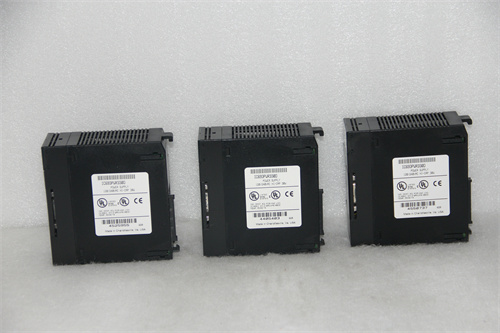

GE IC693PWR330 Detailed Information

GE IC693PWR330 is a high-performance power module.The following is a detailed introduction to the product.

Basic parameters

Brand:GE(General Electric)

Model:IC693PWR330

Origin:United States

Weight:The weight information provided by different sources is different,1.79856KG and 0.5KG respectively.This may be due to differences in packaging or accessories of products from different batches or different suppliers.

Size:There are also multiple size information,such as 5.2×7.6CM(probably the core module size)and 120mm×90mm×60mm(probably the overall size,including the shell,etc.).The actual size may vary depending on the specific product.

Color:Black

Electrical characteristics

Rated output power:30 watts

Output voltage

+5VDC(maximum 30 watts)

+24VDC relay power output(maximum 5 watts)

Isolated+24VDC(maximum 20 watts,total not exceeding 30 watts)

Input voltage range:85 to 264VAC or 0 to 300VDC

Output voltage range

5VDC:5.0VDC to 5.2VDC(nominal 5VDC)

24VDC relay:24 to 28VDC

Isolated:2.5VDC to 28VDC

Functional characteristics

Compatibility:Generally compatible with GE Fanuc PLC systems,especially 90-30 series PLCs.

Wide voltage input:Able to work stably in voltage fluctuations around the world.

High efficiency:Reduce energy loss and reduce operating costs.Usually the efficiency can reach 90%or higher.

Compact design:Save installation space and facilitate integration.

Reliable protection:It has multiple protection functions such as overload,overvoltage,and short circuit to ensure safe operation of the system.

Application Fields

GE IC693PWR330 is widely used in various industrial automation fields,such as analog instrumentation,industrial control,process control and monitoring,factory automation,intelligent networked PLC controllers,automatic testing and data acquisition,etc.Especially in the automated production lines of the manufacturing industry,this power module provides stable power support to ensure the normal operation of machinery and equipment.
