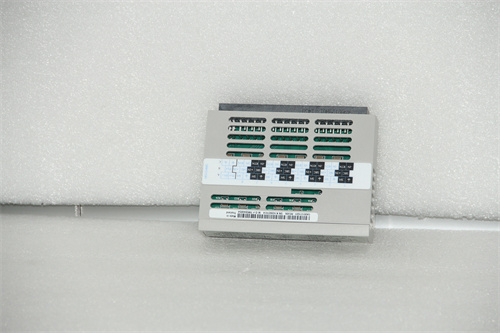

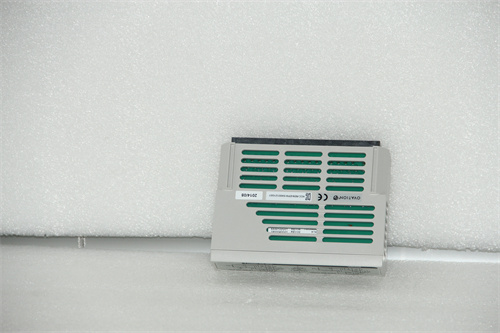

WESTINGHOUSE 5X00121G01 Product Overview

WESTINGHOUSE 5X00121G01 is a module produced by Westinghouse.The following is a detailed introduction to the module.

Basic information

Brand:Westinghouse/Westinghouse.

Model:5X00121G01.

Product features

Digital input:This module has digital input function.

Analog output:The analog output of this machine is 2-way output(±10V voltage type).

I/O image area

Digital I/O image area:256(128 input/128 output).

Analog I/O image area:64(32 input/32 output).

Extension module:Supports 3 ordinary modules,not functional modules.

Single-phase counter:2×20KHZ single phase.

Communication function:Integrated two RS-4 standard DB9 communication ports,PPI baud rate is 9.6,19.2kbps,free port baud rate is 1.2kbaud to 115.2kbps.

Working temperature:0~60℃.

Dimensions:Length×width×height is 140x80x62mm.

Wiring details

The analog part has 6 terminals,namely M,V0,V1 for analog output and M,A+,B+for analog input.

The M of the output terminal is equipotential with the M of the CPU power supply terminal.V0 or V1 outputs±10V to M,and the two analog outputs share one M terminal.

The input A+to M and B+to M both input positive and negative 10V,and the two analog inputs share one M terminal.
