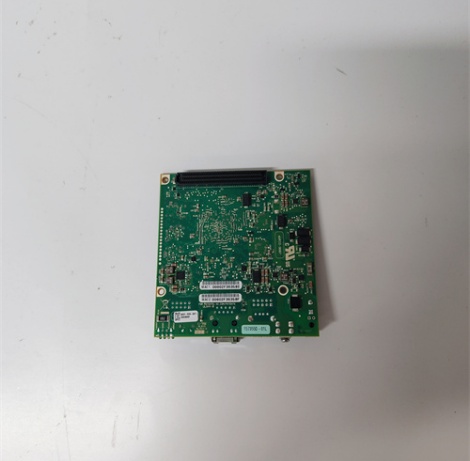

NI SBRIO-9607 Single-Board RIO Controller Product Description

The NI SBRIO-9607 is a high-performance single-board RIO(Reconfigurable I/O)embedded system module developed by National Instruments(NI).Designed for industrial automation,real-time control,and data acquisition applications,it integrates a reconfigurable FPGA,a dual-core processor,and a wealth of I/O interfaces into a compact PCB design,enabling flexible,reliable,and high-speed embedded solutions.

Key Features

Hardware Configuration

Processor:Dual-core ARM Cortex-A9 CPU operating at 667 MHz,providing robust processing power for real-time control tasks.

FPGA:Xilinx Zynq-7020 FPGA for hardware-accelerated signal processing and custom logic design.

Memory:512 MB DRAM(volatile)and 512 MB Flash(non-volatile)for storage and application execution.

I/O&Connectivity

Digital I/O:96 single-ended 3.3 V digital I/O lines directly connected to the FPGA.

Communication interfaces:Gigabit Ethernet,CAN bus,USB,RS-485/232 serial ports,and an RIO Mezzanine Card(RMC)connector for high-speed data transfer and expansion.

RMC Expansion:Supports up to two C Series I/O modules or custom mezzanine cards for tailored solutions.

Real-Time Performance

Runs NI Linux Real-Time OS,ensuring deterministic responses for critical control and data tasks.

FPGA-based hardware acceleration enables lowlatency processing for applications requiring sub-microsecond precision.

Programmability

Software Tools:Programmed using LabVIEW Real-Time and LabVIEW FPGA for easy algorithm development.

Native Support:Also compatible with C/C++and Python for advanced customization.

Environmental Robustness

Operating temperature range:-40°C to+85°C.

Humidity resistance:5%to 95%non condensing.
