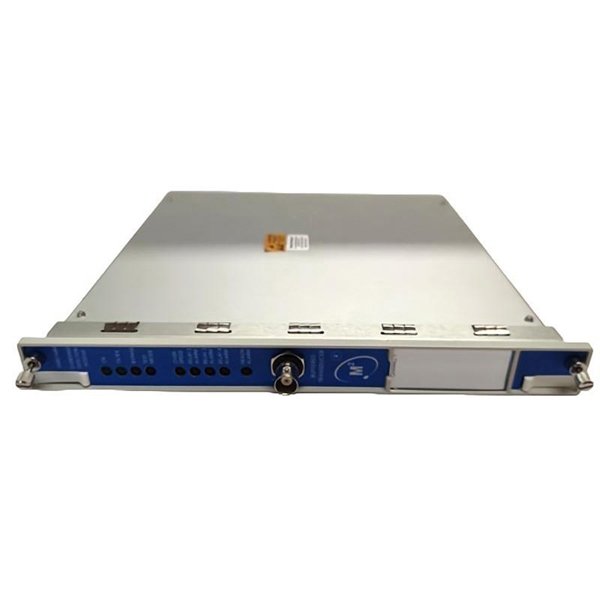

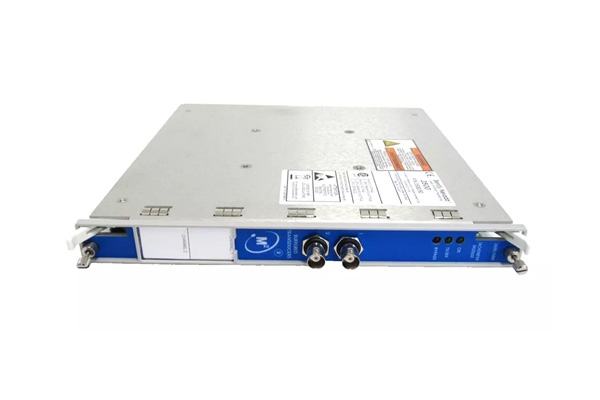

Bently 3500/54 286566-01 overspeed detection Module Detailed Technical Overview

Bently Nevada 3500/54 (286566-01) overspeed detection module is a monitoring and protection device designed specifically for industrial rotating machinery.

It is used for real-time monitoring of mechanical equipment’s overspeed, zero speed, and performance within the speed range,And provide reliable alarm and protection functions, widely used in steam turbines, compressors, and other high-speed rotating equipment.

Product Overview

Attribute Details

Model 3500/54

Order number 286566-01

Equipment type: Overspeed Detection Module

Bently Nevada 3500 Series

Main functions include overspeed protection, zero speed detection, and multi speed segment monitoring

Installed in the 3500 frame as an independent protection module

Key features

Multi channel design:

Provide two monitoring channels, each working independently and supporting redundant or multi-point monitoring.

Real time alarm function:

Built in Alert and Danger alarm mechanisms ensure the safe operation of the device.

Support alarm relay output, used to trigger protective actions or notify the control system.

Compatible with multiple sensors:

Supports use with Bently Nevada’s eddy current probes, magnetic sensors, and optical sensors.

Modularity and Scalability:

As part of the 3500 series, it seamlessly integrates with other modules such as the 3500/22 communication module.

Support hot swapping, modules can be replaced without shutting down, making maintenance convenient.

technical parameter

Parameter details

Number of channels: 2 channels

Support sensor types such as eddy current probes, magneto resistive sensors, optical sensors, etc

Speed range 1 to 120000 RPM

Output signal warning and danger alarm output, which can trigger the protection system

Alarm delay configurable, typical value 0-60 seconds

The power supply voltage comes from the 3500 series frame

Operating temperature -30 ° C to+65 ° C

Storage temperature -40 ° C to+85 ° C

The protection level meets industrial standards, with high temperature resistance, dust resistance, and shock resistance
