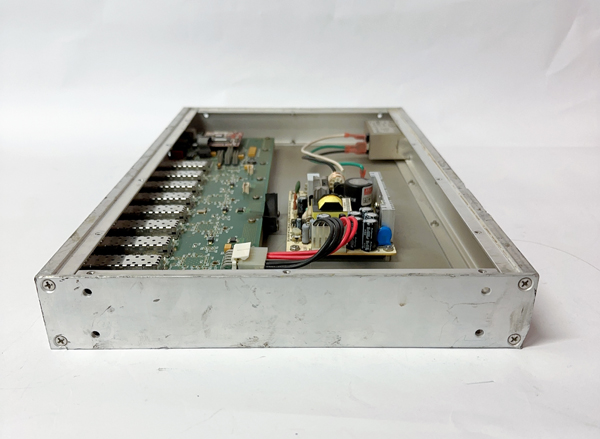

GE VMIACC-5595-208 Product Details

GE VMIACC-5595-208 is a reflective memory hub component designed for Abaco Systems’5565 series.It is the core component of a reflective memory network,which can facilitate high-speed data communication between different nodes or devices.In addition,it is also defined as a high-performance current sensor for measurement and control applications of power electronic equipment.

Product Features

High-speed data transmission

Operating at 2Gb/s,it enables fast data exchange between connected devices.

Provides high-speed connections between switches and supports a data transfer rate of 2Gb/s,thereby speeding up data transmission and improving system performance.

Scalability

Supports up to 256 nodes in a network to create large-scale systems.

For large networks,multiple VMIACC-5595 components can be cascaded to support a managed hub array of up to 256 nodes to meet the needs of large cluster systems.

Reliability

Automatically bypasses defective or disconnected nodes to ensure network uptime and integrity.

Automatically bypasses defective or disconnected nodes when loss of signal or loss of valid synchronization pattern is detected,ensuring other nodes in the network continue to operate.

Flexibility

Configurable cable lengths up to 10 km provide versatility for network deployment.

Optical ports are implemented via small form-factor pluggable(SFP)transceivers,supporting multimode(short reach)or single-mode(long reach)transceivers,allowing users to select the appropriate transceiver type to save costs and optimize the system.

Management

Equipped with Ethernet and RS232 ports for remote access and control for easy configuration and monitoring.

Users can remotely monitor the hub via a simple PC serial port or local area network(LAN)and web browser for easy network management and maintenance.

Durability

Adopts a rugged design suitable for industrial environments.

Signal Regeneration Technology

Each port can regenerate the serial optical signal to eliminate insertion loss and cable attenuation issues,reduce jitter,and ensure stable and reliable data transmission.

Product parameters

The product parameters of GE VMIACC-5595-208 may vary depending on the application scenario and specific use.The following are some common parameter ranges

Input voltage:110V380V(180V AC240V AC or 220V AC in some application scenarios)

Current:1A~30A(20A in some application scenarios)

Power:5W~130W

Accuracy:±0.5%(when used as a current sensor)

Frequency range:DC~100kHz(when used as a current sensor)

Operating temperature range:-40℃+85℃(when used as a current sensor)or-20℃+70℃(in other application scenarios)

Size:varies depending on the specific application scenario and installation method,such as 44mm×31mm×22mm(when used as a current sensor)or 150×100×50mm(in other application scenarios)

Weight:30g(when used as a current sensor)

Application scenarios

GE VMIACC-5595-208 is particularly suitable for the following applications

Cluster systems that require high-speed data transmission and real-time communication.

Industrial automation and control systems that require high system reliability and stability.

Large network systems that require flexible configuration and scalability.

Current measurement and control of power electronic equipment,such as electronic meters,power conditioners,power inverters,etc.
