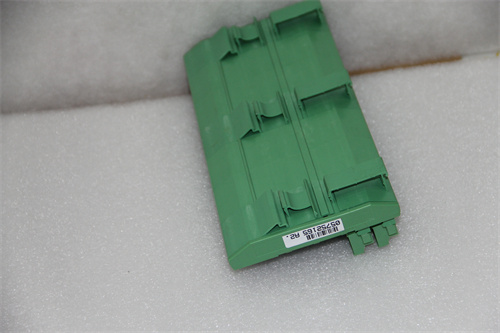

TRICONEX 9566-8XX Product Overview

TRICONEX 9566-8XX is an industrial control card module or fault-tolerant circuit board controller in the Triconex product series,produced by Triconex,a brand of Schneider Electric.The following is a detailed introduction to TRICONEX 9566-8.

Product Features

High reliability and safety

TRICONEX 9566-8XX adopts advanced design and technology to ensure stable operation in industrial environments and effectively respond to various faults and emergencies.

It is designed for the safe application of industrial automation systems and provides highly reliable and safe solutions.

Strong fault tolerance

The controller has strong fault tolerance and can detect and handle transient and steady-state errors.

By adopting a triple modular redundant structure(TMR),it consists of three identical system branches,each of which executes the control program independently and works in parallel with the other two branches.This structure ensures that any failure in a single branch will not affect other branches,thereby enhancing the safety and utilization of the controller and its control process.

Multifunctional integration

TRICONEX 9566-8XX integrates multiple safety functions,such as fault detection,status monitoring,logic control and fault recovery.These functions enable it to fully monitor and control industrial processes,ensuring precise operation of equipment and safety of personnel.

Flexibility and scalability

The controller can be used in conjunction with other Triconex products,such as Tricon series safety controllers,input/output modules,communication modules,etc.,to build a complete industrial automation and safety system.

The specific model of TRICONEX 9566-8XX may vary to accommodate different configurations and application requirements.

Application areas

TRICONEX 9566-8XX has a wide range of applications in multiple fields,including but not limited to

Industrial automation:used to monitor and control various industrial processes,such as chemical plants,oil and gas industries,power stations,etc.

Safety systems:implement safety logic and control to monitor and respond to potential safety risks and protect the safety of personnel,equipment and the environment.

Oil and gas industry:control and monitor the process of oil and gas extraction,transportation and processing to ensure the safe operation of equipment and optimize production efficiency.

Power industry:monitor and control the processes of power generation,transmission,and distribution to ensure stable energy supply and operation.

Process control:used in process control systems,such as pharmaceutical factories,to monitor and adjust various parameters,such as temperature,pressure,flow,etc.
