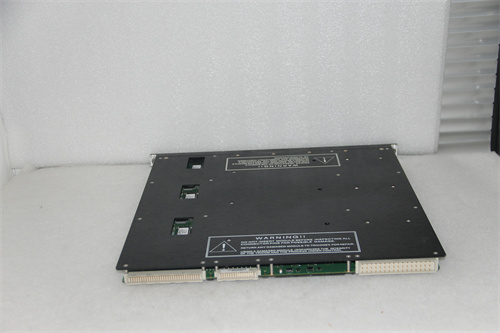

TRICONEX 3805E Product Introduction

TRICONEX 3805E belongs to the Triconex series and is a high-performance analog output module for industrial process control.The module adopts triple redundancy(TMR)design to ensure high reliability and availability of the system and meets SIL 3 safety integrity level requirements.It is mainly used to convert digital signals into analog signals to drive actuators and achieve precise control of process variables.

Product Features

High-precision analog output

TRICONEX 3805E has a high-precision analog conversion function,which can ensure the accuracy and stability of the output signal and meet strict control requirements.

Multi-channel design

The module usually has multiple analog output channels,each of which can be independently configured and controlled,which is convenient for the output and control of multiple signals.

Voltage/current output optional

TRICONEX 3805E can be configured to provide voltage output(such as-10V to+10V)or current output(such as 4-20mA)to meet the connection requirements of different types of equipment.

Isolation between channels and between systems

The module has isolation functions between channels and between channels and systems to ensure the stability of signal transmission and reduce interference,thereby improving the reliability of the system.

Programmability

TRICONEX 3805E supports programmable functions,and users can flexibly configure and program according to specific application requirements to achieve customized signal output.

Monitoring and diagnostic functions

The module has fault detection,fault alarm and diagnostic functions,which can monitor the module status in real time and report any abnormal conditions,so that users can find problems and take measures in time.

Abundant communication interfaces

TRICONEX 3805E supports a variety of communication interfaces,such as Ethernet/IP,Modbus,TCP/IP,RS-232,RS-485,etc.,which is convenient for communication with other devices or control systems to achieve remote monitoring and control.

Product parameters

Model:TRICONEX 3805E

Input voltage:24V DC

Output voltage:5V DC(analog output range depends on configuration)

Operating temperature:-40℃~85℃

Number of channels:4 analog output channels

Output type:supports two analog output types:current(4-20mA)and voltage(-10V to+10V)

Output accuracy:±0.1%

Response time:≤2ms

Power consumption:≤5W

Size:120mm x 80mm x 50mm

Application fields

TRICONEX 3805E module is widely used in oil and gas extraction,oil refining,chemical production,power generation,nuclear power,metallurgy,pharmaceuticals,food processing,pulp and paper,and water treatment industries.In these fields,it is mainly used in process control and safety interlock systems to ensure the safety and stability of industrial processes.Specific application scenarios include but are not limited to valve control,pump control,motor control,heater control,and cooler control.
