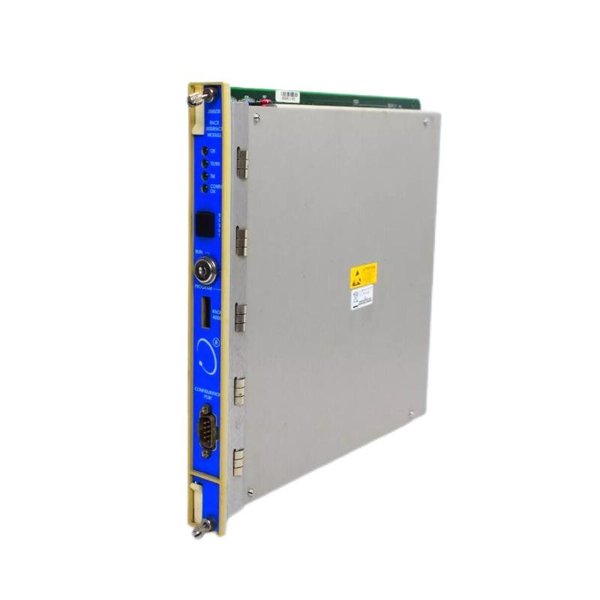

Bently Nevada 3500/20-01-01-00 125744-02 Rack Interface Module Product Details

The Bently Nevada 3500/20-01-01-00 125744-02 Rack Interface Module (RIM) is a critical component of the Bently Nevada 3500 System, which is used for machinery protection and condition monitoring.

General Information

• Manufacturer Bently Nevada
• Part Number 3500/20-01-01-00 125744-02
• Product Type Rack Interface Module (RIM)
• Series 3500 System

Description

The RIM serves as the primary interface to the 3500 rack, enabling communication between the rack and external devices. It also performs various functions essential for system operation, including

• Configuring the rack
• Retrieving machinery information
• Supporting external communications processors

Key Features

• Four-channel input Accepts signals from up to four proximity and seismic transducers
• Signal conditioning Processes input signals to generate various parameters, including vibration amplitude, vibration frequency, and position
• Alarm generation Compares conditioned signals with user-programmable alarms to detect and alert operators of potential machinery issues
• Data communication Provides communication pathways for data exchange between the rack and external systems

Applications

The Bently Nevada 3500/20-01-01-00 125744-02 Rack Interface Module is widely used in various industries for machinery protection and condition monitoring, including

• Oil and gas
• Power generation
• Petrochemical
• Manufacturing

Specifications

• Input Impedance 270 Ω
• Output Impedance 270 Ω
• Power Requirements 24 VDC
• Operating Temperature -20°C to 65°C (-4°F to 149°F)
• Storage Temperature -40°C to 80°C (-40°F to 176°F)
• Humidity 95% non-condensing
• Dimensions 241.3 mm x 24.4 mm x 241.8 mm (9.5 in. x 0.96 in. x 9.52 in.)
• Weight 2.2 kg (4.85 lbs.)
