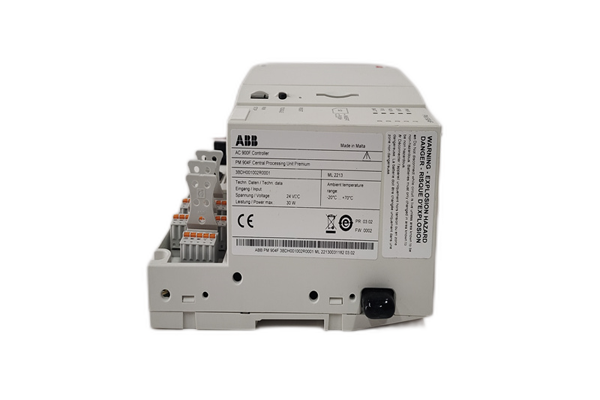

ABB AC900F PM904F Technical Specifications

The ABB AC900F PM904F is a powerful and versatile Distributed Control System (DCS) module within the ABB Freelance series, designed specifically for industrial automation control and process optimization. Below is a detailed overview of its technical specifications, features, and applications:

Technical Specifications

• Processor: High-performance PowerPC processor (RISC architecture) for efficient multitasking and fast cycle times.
• Memory:
  • 48 MB total memory, including 16 MB battery-buffered SRAM and 32 MB DRAM.
  • Supports up to 1500 I/O points, with a 48 MB memory capacity for data and applications.
• Communication Interfaces:
  • 4 x 100 Mbit/s Ethernet ports for seamless integration with controllers, operator stations, and engineering tools.
  • 2 x serial interfaces (RS-232/485) for Modbus communication and remote control.
  • 1 x diagnostic interface for system monitoring and radio clock synchronization.
• I/O Capabilities:
  • Supports up to 10 direct S700 I/O modules via the right-side I/O bus.
  • Fast I/O scan time of 2 ms, with short-circuit and break detection for each channel.
• Power Supply: Requires external 24 VDC power, with optional redundancy for critical applications.
• Physical Dimensions: 95 mm (depth) x 152 mm (height) x 285 mm (width), weighing approximately 1.1 kg.

Key Features

1. Modular Design:
   • The PM904F is part of a modular system, allowing flexible configuration with communication interfaces (CI/CM) and I/O modules tailored to specific application needs.
   • Supports up to four PROFIBUS or CAN bus modules for enhanced fieldbus communication.
2. Redundancy:
   • Optional CPU, communication, and power redundancy configurations ensure high system availability and reliability in critical applications.
3. Advanced Connectivity:
   • Comprehensive support for industrial communication protocols including Modbus TCP, PROFINET, Ethernet/IP, OPC UA, IEC 60870-5-104, and PROFIBUS.
   • Enables integration with third-party devices and systems, facilitating seamless data exchange and system expansion.
4. Data Security and Reliability:
   • Built-in SD card slot for easy backup, firmware updates, and high availability.
   • G3-compliant coating for durability in harsh or corrosive environments.
5. User-Friendly Interface:
   • Optional LCD display with operation keys for real-time status monitoring, diagnostics, and parameter adjustments directly on the module.
   • Intuitive operation modes configurable via front-panel switches.
6. Scalability:
   • Designed to support small to medium-scale industrial control systems, with the ability to expand I/O capacity up to 1500 points.

Applications

The AC900F PM904F is well-suited for a wide range of industrial applications, including:

• Process Control: Precise control of continuous processes in industries such as oil and gas, chemicals, and pharmaceuticals.
• Factory Automation: Integration with manufacturing lines for efficient production monitoring and control.
• Power Generation and Distribution: Reliable operation in power plants and electrical substation control systems.
• Water and Wastewater Treatment: Real-time monitoring and control of treatment processes to ensure compliance and efficiency.
• Food and Beverage: Automation of production lines to maintain quality and consistency.

Advantages

• High Performance: The PowerPC processor and 48 MB memory enable fast execution of complex control tasks and real-time data processing.
• Flexibility: Modular design and support for multiple communication protocols allow easy adaptation to various industrial environments.
• Reliability: Redundancy options and robust hardware ensure continuous operation in critical applications.
• Ease of Use: Intuitive interface and configuration tools simplify installation, commissioning, and maintenance.
• Scalability: The system can grow with your needs, supporting up to 1500 I/O points and accommodating future expansions.

The ABB AC900F PM904F controller stands out as a robust and scalable solution for industrial automation, offering advanced features, high performance, and seamless integration capabilities. Its modular design, combined with optional redundancy and extensive communication support, makes it ideal for a wide range of demanding applications across various industries.
