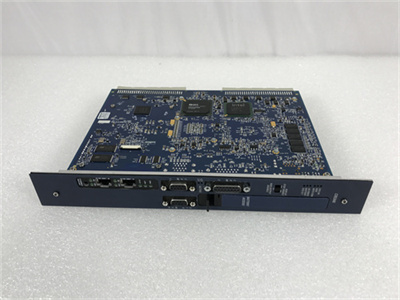

GE IC698CPE040-JP Product Introduction

GE IC698CPE040-JP is part of the RX3i PACSystem(Programmable Automation Controller System),designed for industrial control applications.It is known for its high-speed program and application execution speed,large memory capacity,and easy upgrade.

Technical Specifications

Processor Type:Pentium-M(Pentium M)microprocessor.

Processor Speed:Rated frequency is 1800 megahertz(MHz),providing high-speed computing power.

Memory:Contains 64 MB of user memory to meet the processing needs of complex industrial tasks.

Voltage Requirements:Can operate at 5V DC,24V DC,or-24V DC,with good voltage adaptability.

Load requirements:6.8 amps at 5 VDC,0.003 amps at 12 VDC and-12 VDC.

Number of serial ports:3 serial ports are provided,two of which can be used for firmware upgrades or to create serial interfaces with external devices,and the third port is a station management port for the Ethernet interface.

Firmware ports

The first firmware port is an RS-232 compatible port with an indicator light to indicate port activity.

The second firmware port is compatible with RS-485 and requires a shielded cable for connection.

The third port is RS-232 compatible like the first firmware port.

Features

High performance:The high-speed processor and large-capacity memory ensure efficient program and application execution speed.

Easy to upgrade:The design allows users to easily upgrade to adapt to changing technology and industrial application needs.

Communication capabilities:The embedded Ethernet port facilitates communication between the CPU,programmer,and different HMI devices.

Self-diagnostic function:A regular self-diagnostic check is performed after power-on to ensure system stability and reliability.

VME module support:supports VME64 standard format,facilitating communication between CPU,I/O and intelligent option modules.

Test edit mode:allows users to easily test modifications while the program is running,improving development efficiency.

Application areas

The GE IC698CPE040-JP CPU is designed for RX7i PACSystem PLC or programmable logic controller and is widely used in various industrial automation scenarios such as manufacturing,process control,energy management,etc.
