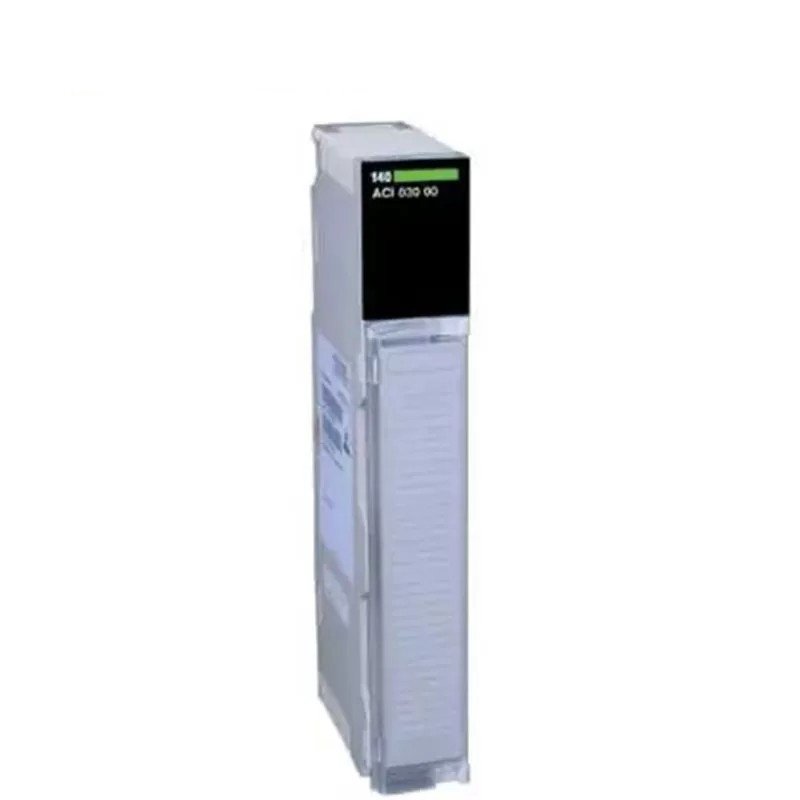

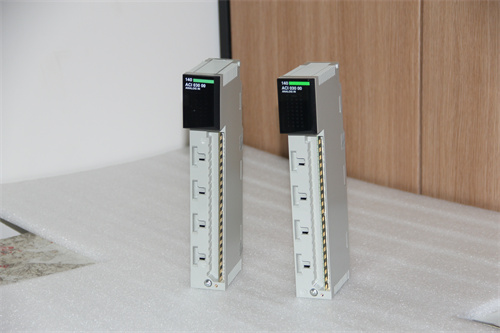

SCHNEIDER 140ACI03000 Detailed Introduction

The 140ACI03000 module is designed for process control applications,with a conformal coating module and an extensive partner module catalog.It provides 8 multi-range analog input channels that can receive 4-20mA or 1-5VDC analog signals and convert them into digital signals for PLC processing.

Technical Specifications

Number of input channels:8

Input signal range:4-20mA or 1-5VDC

Resolution:12 bits

Absolute maximum input:50V DC,25mA

Input impedance:250 Ohm current+/-0.01%>20MOhmVoltage

Absolute accuracy error:+/-0.1%maximum full scale;+/-0.05%full scale

Linearity error:+/-0.04%

Temperature offset accuracy:<=0.005%full scale/℃;+/-0.0025%full scale/℃

Common mode rejection:>-72 dB 60Hz

Power consumption:2W

Address requirements:9 input words

Fault type:Undervoltage range 15V;Broken line 420mA

Required bus current:240mA

Product features

High precision:12-bit resolution ensures high-precision analog input.

Multi-range selection:supports two input signal ranges of 4-20mA or 1-5VDC,suitable for different application scenarios.

High reliability:The conformal coating module is used to improve the reliability and durability of the module.

Easy to integrate:As part of the Modicon Quantum PAC series,the 140ACI03000 module can be easily integrated with other Quantum series modules to form a complete control system.

Wide compatibility:Supports multiple IEC languages​​(such as LD,ST,FBD,SFC,IL,etc.)and Unity Pro software for programming,which is convenient for users to develop and configure.

Application field

The 140ACI03000 module is suitable for industries that require continuous operation and achieve efficient cycle time,such as material handling,packaging and textile machinery.It can be used as a key component in the control system to receive and process analog signals from sensors and provide reliable data support for system decision-making.
