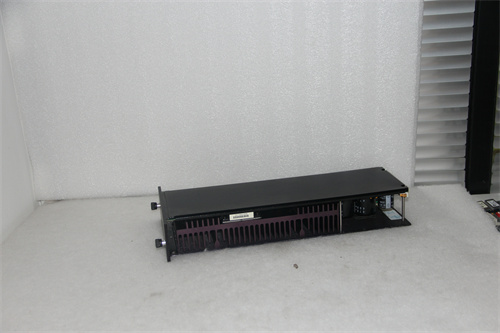

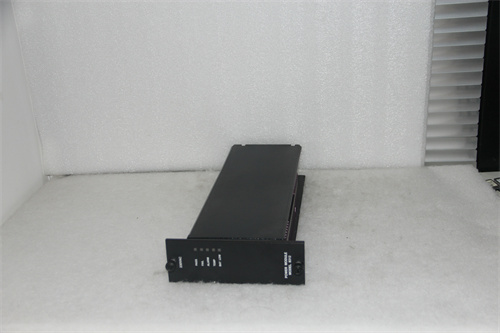

TRICON 8312 Product Introduction

TRICON 8312 is a power module for safety instrumented systems(SIS)with high system fault tolerance.The following is a detailed introduction to TRICON 8312.

Basic Information

Product Name:TRICON 8312

Type:Power Module

Function:Provides regulated power for SIS components(such as controllers,input/output modules and communication modules),and has redundant power supply and fault detection functions.

Technical Specifications

Input Voltage:230 VAC,50/60 Hz.Input AC voltage range is 185-285VAC at 47-63 Hz.

Output Voltage:+24 VDC,-24 VDC.

Output Current:10 A per output.

Redundant Power Supply:With redundant power supply design,improve system reliability and stability.

Fault Detection:Able to monitor the fault of the power module in real time,and alarm or take other measures.

Dimensions:19.7 x 11.4 x 3.5 inches(L x W x H).

Weight:5.5 pounds.

Features

High fault tolerance:The TRICON system provides fault tolerance through a triple modular redundant structure(TMR).This means that the system consists of three identical system branches(except for the power module,which is dual redundant),each of which executes the control program independently and works in parallel with the other two branches.This design ensures that single-point failures in any branch will not be transmitted to the other two branches,thereby improving the reliability and stability of the system.

Extensive diagnostic functions:TRICON 8312 can perform extensive diagnostic work on each branch circuit,each module,and each functional circuit,detect faults in operation in a timely manner,and indicate or alarm.Diagnostic information can also be stored in system variables for operators to use this information to modify control actions or guide maintenance processes when faults are found.

Easy to use:From the user’s perspective,using the TRICON system is very simple.The user only needs to connect the sensor or actuator to one terminal and apply a set of logic to program the TRICON.The rest of the work is managed by TRICON itself.

Application Fields

TRICON 8312 power modules are widely used in various industrial fields that require high reliability and safety,such as oil,gas,electricity,chemical industry,etc.In these fields,TRICON 8312 provides stable power supply for SIS components and ensures that the system can work normally in various harsh environments.

In summary,TRICON 8312 is a powerful and technologically advanced power module with high system fault tolerance and extensive diagnostic functions.It can meet the needs of various industrial application scenarios and provide reliable guarantee for the operation of equipment
