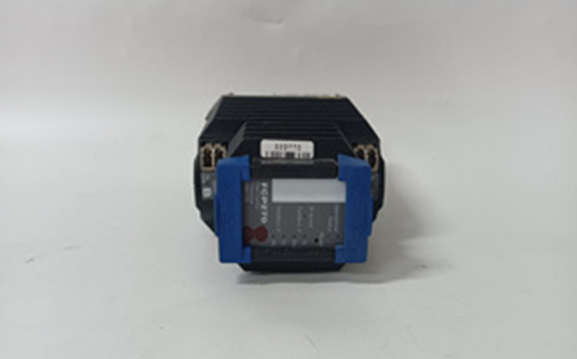

FOXBORO FCP270 Detailed Introduction

FOXBORO FCP270 is a high-performance,distributed,and optional fault-tolerant field control processor launched by Honeywell’s Foxboro brand.It is widely used in industrial automation and process control systems.The following is a detailed introduction to its features and functions.

Core functions

Control function

Works with fieldbus modules(FBMs)to perform regulation,logic,timing,and sequence control,and supports complex process control tasks.

Data acquisition and alarm

Real-time collection of process data,alarm detection and notification to ensure safe operation of the system.

Communication capabilities

Connect to the Foxboro Evo control network via standard fiber optic 100 Mbps Ethernet,supporting high-speed and reliable data transmission.

Modularity and scalability

Multi-module support

Supports up to 32 200 series FBMs(including compact and standard types),and can be expanded to 128 200 series FBMs through fieldbus expansion modules(FEM100).

Fieldbus compatibility

Supports both 2 Mbps or 268 Kbps HDLC fieldbus,allowing connection to 200 series and 100 series FBMs to meet different application requirements.

Fault tolerance and reliability

Patented fault-tolerant design

Adopts a dual-module parallel operation mechanism.When a hardware failure occurs in one module,the other module can take over seamlessly to ensure continuous operation of the system.

Fault detection and self-diagnosis

The module detects faults by comparing external interface communication information,runs a self-diagnosis program to locate the faulty module,and the fault-free module takes over control.

Environmental adaptability and installation

Sturdy housing

Adopts a die-cast aluminum housing that can work in G3-level harsh environments and adapt to extreme conditions such as high temperature,high humidity,and strong vibration.

Installation flexibility

CE certified,it can be directly installed in a non-ventilated field cabinet without the need for a dedicated cabinet,reducing installation costs.

Software and System Support

Software compatibility

Supports self-hosted mode of I/A Series software v8.4-v8.8 or Foxboro Evo control core service v9.0 or higher.

Time synchronization

Supports time synchronization using GPS satellite signals to ensure system time accuracy.

Application areas

Industrial automation

Applicable to automation control systems in industries such as petroleum,chemical,power,water treatment,and pharmaceuticals.

Process control

Provides efficient and reliable process control solutions to meet the needs of complex industrial processes.
