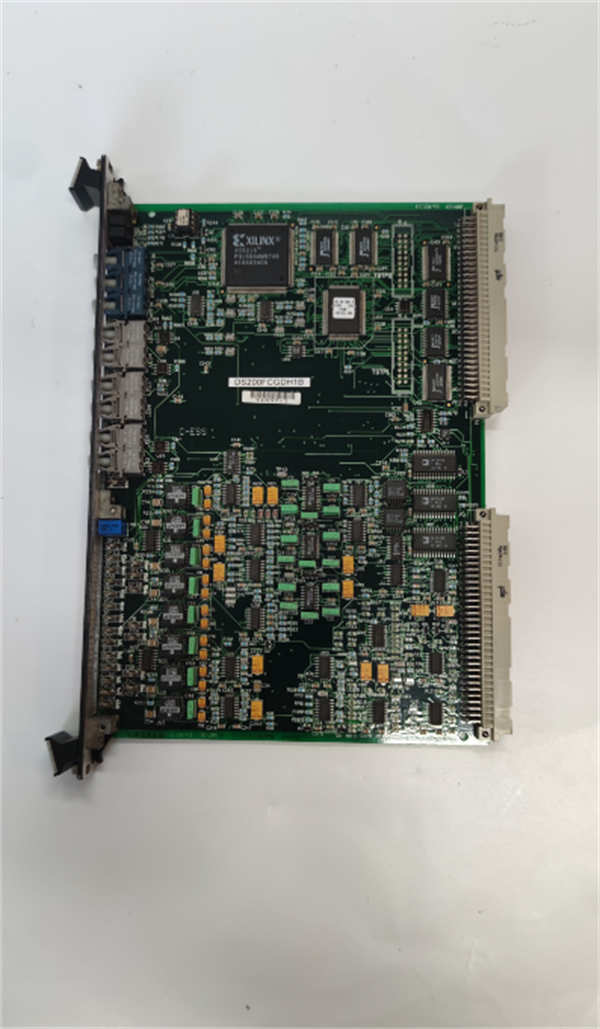

GE DS200FCGDH1B Product Introduction

DS200FCGDH1B is a gate distribution and status card(FCGD)developed by General Electric for its Mark V series(some say it is the Mark VI series)turbine control system.As a key component in the system,it is responsible for processing and controlling various operations of the turbine.

Technical Features

Interface function:As an interface system for a six-pulse phase-controlled non-reversing bridge,DS200FCGDH1B is able to receive information from a digital signal processing card(DSPC)and decrypt it.At the same time,it can also transmit feedback and diagnostic data.

Signal processing:The board is able to receive multiplexed unit status signals from each bridge leg and decode and de-allocate the unit gating signals of each bridge leg.In addition,it receives the bridge feedback signal,scales it,and then transmits the voltage,frequency,and current status data back to the DSPC board.

System Clock:The DS200FCGDH1B has a system clock register that is used to generate trigger commands and time-stamp feedback values.This 16-bit up counter ends when it reaches the hexadecimal value 0FFFFH and resets to 0.

System Reset:During power-up or hardware reset,the system reset signal sets all registers on the board to the starting settings.

System Heartbeat:The system heartbeat register of the DS200FCGDH1B supports the heartbeat function of electronic components as a periodic signal indicating that the component is still operating.The board-level heartbeat begins counting after the VME host CPU is first written,and at the same time,a green front-board LED labeled IMOK will light up.

Specifications

Part Number:DS200FCGDH1B

Manufacturer:General Electric(GE)

Product Type:Gate Control Distribution and Status Card(FCGD)

Series:Mark V(or Mark VI)

Number of Channels:12

Range:-8 mV to+45 mV

Operating Temperature:-30 to 65ºC

Supply Voltage:24 V dc

Board Size:9.2 x 6.3 inches

Weight:0.45 kg

Availability:In stock

Country of Origin:United States

Manual:GEI-100221

Applications

DS200FCGDH1B is mainly used in the management and control systems of wind,gas and steam turbine automatic drive components.As part of the Mark series turbine control system,it plays a key control and monitoring role.
