NI PXIe-5105 Controller Product Introduction

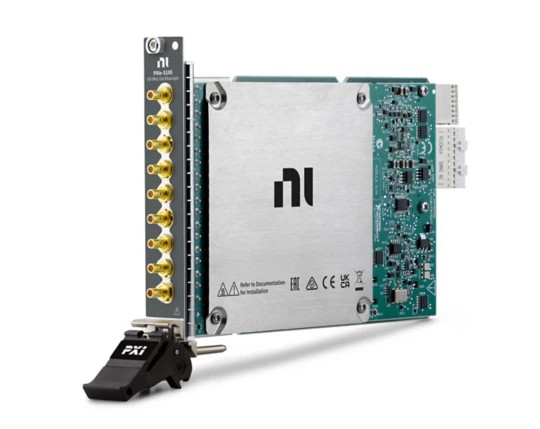

The NI PXIe-5105 is a high-density, 8-channel, 12-bit PXI oscilloscope controller designed for applications requiring precise and high-speed data acquisition. This device is engineered to deliver exceptional performance in multi-channel environments, making it ideal for industries such as aerospace, defense, electronics, and industrial machinery.

Key Features

1. High-Speed Data Acquisition:
   • The PXIe-5105 offers a maximum sampling rate of 60 MS/s and a bandwidth of 60 MHz, enabling accurate capture of fast-changing signals.
2. Multi-Channel Capability:
   • With eight simultaneously-sampled channels, it supports complex applications that require monitoring multiple signal sources in real-time.
3. Flexible Configuration:
   • The controller provides adjustable settings for coupling, impedance, voltage range, and filtering, allowing it to adapt to various measurement requirements.
4. Advanced Triggering Modes:
   • Equipped with multiple triggering options, the PXIe-5105 ensures reliable capture of specific events or signal conditions, enhancing measurement accuracy.
5. Deep Onboard Memory:
   • Its large onboard memory supports extended data recording, which is crucial for analyzing transient events or long-duration signals.
6. PXI Synchronization and Data Streaming:
   • The device features advanced PXI synchronization capabilities, enabling seamless integration with other PXI instruments for coordinated measurements. It also supports efficient data streaming for real-time analysis.
7. Instrument Driver with Analysis Functions:
   • The PXIe-5105 includes a comprehensive instrument driver that facilitates data streaming, processing, and analysis, simplifying system integration and reducing development time.

Technical Specifications

• Model: PXIe-5105
• Channels: 8
• Resolution: 12-bit
• Maximum Sampling Rate: 60 MS/s
• Bandwidth: 60 MHz
• Input Impedance: 1 MΩ, 50 Ω (selectable)
• Onboard Memory: Deep memory for extended recording
• Power Supply: 24 V DC
• Form Factor: PXI Express module

Applications

• Aerospace and Defense: For testing and monitoring of radar, communication, and electronic warfare systems.
• Electronics Manufacturing: In the development and testing of high-speed digital circuits, semiconductors, and consumer electronics.
• Industrial Automation: For condition monitoring, predictive maintenance, and quality control in manufacturing processes.
• Research and Development: In laboratories requiring high-precision, multi-channel data acquisition for scientific experiments.

Why Choose NI PXIe-5105

• Performance: High sampling rate and bandwidth ensure accurate capture of fast signals.
• Scalability: The 8-channel design allows for expansion in multi-signal applications.
• Integration: Seamless compatibility with PXI systems and other NI instruments for a complete measurement solution.
• Support and Software: NI’s extensive software ecosystem, including LabVIEW, provides powerful tools for data analysis and automation.

The NI PXIe-5105 controller is a versatile and high-performance solution for engineers and researchers needing reliable, multi-channel data acquisition in demanding applications.
