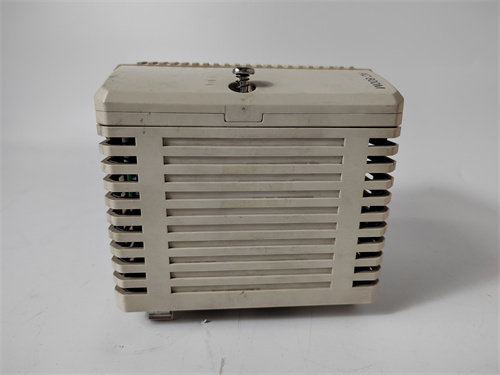

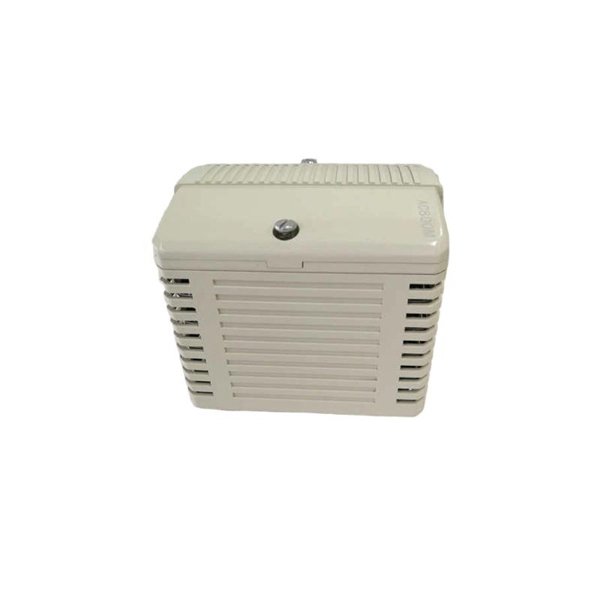

ABB PM864A 3BSE018162R1 Detailed Introduction

ABB PM864A 3BSE018162R1 is a high-performance controller module produced by ABB.The following is a detailed introduction to this product.

Product Overview

Manufacturer:ABB

Model:PM864A

Part number:3BSE018162R1

Series:AC800M series

Product features

High-performance processing capabilities:PM864A has powerful processing capabilities and can handle complex control tasks and real-time application requirements.

Multiple communication interfaces:Supports multiple communication protocols and interfaces,such as Ethernet,serial communication,etc.,to facilitate data exchange and integration with other devices and systems.

Flexible configuration:Provides flexible configuration options that users can customize and configure according to specific needs to meet diverse application scenarios.

High reliability:As an ABB product,PM864A is known for its reliability and stability,and is suitable for industrial environments that require high reliability.

Industrial standards:Comply with industrial standards and suitable for various industries,including manufacturing,power industry,process industry,etc.

Application fields

The PM864A controller module can be used in various application areas such as process control,machinery control,power distribution,etc.It is widely used in various industrial automation systems,such as production lines,power plants,etc.,and can meet the needs of these systems for complex control and monitoring tasks,improve production efficiency,and reduce maintenance costs.

Product components and interfaces

PM864A is based on rail installation and has a modular design.

It contains the microprocessor and RAM,real-time clock,LED indicators,start button and compact flash memory interface.

The backplane has two RJ45 Ethernet ports(CN1,CN2)for connection to the control network,and two RJ45 serial ports(COM3,COM4).One of the ports is an RS-232C port with modem control signals,and the other port is isolated and used to connect the configuration tool.
