AB 1326AB-B520E-M2L Product Details

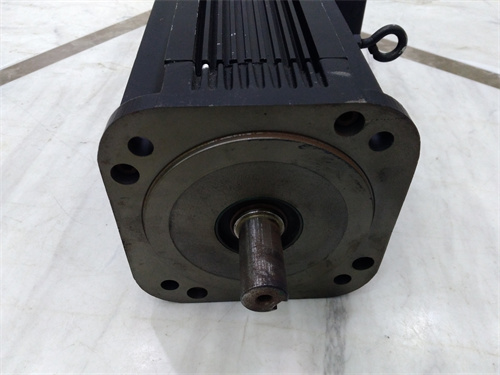

Allen‑Bradley 1326AB-B520E-M2L is a servo motor or servo drive(may vary from source to source,but are considered servo drives for this purpose)produced by Allen-Bradley(a brand of Rockwell Automation).Here is a detailed introduction to it.

Basic Information

Brand:Allen-Bradley(Rockwell Automation)

Model:1326AB-B520E-M2L

Product Series:Allen-Bradley Servo Motor Bulletin 1326 Product Series

Technical Features

Permanent Magnet Technology:Permanent magnet technology is used,including a 2-inch long internal ferrite magnet stack,which allows the drive/motor to operate with low inertia and high servo response.

High-speed operation:The maximum operating speed can reach 3000 RPM.

High-resolution feedback:A multi-turn feedback system with high resolution.

Rated current:Supports rated currents from 4.5 to 6.7 amps.

Servo response:The permanent magnet rotor design improves servo response speed.

Three-phase sinusoidal winding:The stator magnetic field adopts a three-phase sinusoidal winding,which can transfer heat directly to the environment and run smoothly at low speed.

Brushless rotary transformer:Provides position,commutation and speed feedback information to enhance the control accuracy and stability of the system.

Functions and applications

High-precision control:With high-precision position,speed and force control capabilities,it can be used for precise motion control applications.

Dynamic response:With fast dynamic response capabilities,it can quickly adjust and control the motion system to adapt to changing work requirements.

Multiple control modes:Supports multiple control modes,such as position control,speed control,force control,etc.,which can be selected and configured according to the needs of specific applications.

Network communication:Supports various communication interfaces and network protocols,such as Ethernet,Modbus,DeviceNet,etc.,which is convenient for communication and integration with other devices and systems.

Industrial applications:Widely used in manufacturing,automation,robotics,material handling,printing,packaging and medical equipment,etc.,for controlling various motion equipment such as machines,robotic arms,conveyor belts,rotary tables,etc.

Other features

Stall protection:100%continuous rated output torque at stall(zero rpm).

Precision balance:Precision balance with a total peak-to-peak displacement of 0.0005º(0.0127 mm)ensures smooth operation.

Mounting method:Supports vertical shaft upward or downward mounting.

Protection level:IP65 protection level(when used with shaft seal option)can withstand harsh environments,the motor is dust-proof and can withstand pulsed water flow,and no liquid will enter the motor.
