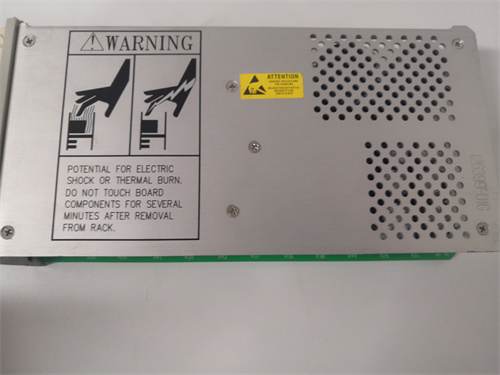

Bently Nevada 3500 15 127610-01 Product Overview

Bently Nevada’s 3500/15 127610-01 is an AC power module.Here is a detailed introduction.

Basic attributes

Development company:Bently Nevada

Series:3500 series components

Module type:AC power module

Model:3500/15 127610-01

Design and Installation

Modular design:The power module adopts a half-height module design and needs to be installed in the specially designed slot on the left side of the rack.

Rack compatibility:A rack can accommodate one or two power supplies(any combination of AC and/or DC),either of which is capable of powering the entire rack.

Redundant design:When two power supplies are installed in the rack,the lower power supply serves as the main power supply and the upper power supply serves as the backup power supply.As long as the second power supply is installed,either power supply module can be removed or inserted without interrupting rack operation.

Power input and output

Input voltage:The module supports a variety of input voltages,including high voltage AC(such as 220 Vac nominal,175 to 264 Vac rms,247 to 373 Vac pk)and low voltage AC(such as 110 Vac nominal,85 to 132 Vac rms,120 to 188 Vac pk),but there are also materials mentioning the input voltage is 100240 VAC,50/60 Hz,2 A or DC1830V.The specific input voltage range may vary depending on product batch or configuration.

Output Voltage:This module converts the input voltage to a voltage that other 3500 modules can use,such as 24 VDC,5.5 A.However,the specific output voltage and current may vary depending on the product configuration.

Performance and characteristics

Stability and reliability:The power module has stable and reliable power output,which can meet the power requirements of sensors and monitoring equipment in various vibration monitoring systems.

Protection function:The module has overload protection and short circuit protection functions,which can automatically protect the device when overload or short circuit occurs,ensuring the safe operation of the equipment.

Operating temperature range:The operating temperature range of this module is usually 0℃to 60℃,but some data also mention-40℃to+85℃.The specific operating temperature range may vary depending on product batch or configuration.

Ambient humidity:≤90%RH(relative humidity).

Size and weight:The dimensions are approximately 180mm x 130mm x 45mm and the weight is approximately 1.5kg.

Application fields

The Bently Nevada 3500/15 127610-01 AC power module is mainly used to provide power support for various modules of the Bently Nevada 3500 series monitoring system,ensuring the reliable operation of the system in various industrial applications.It is suitable for automatic shutdown machinery protection applications that require high reliability and high availability,and is widely used in modern industrial fields such as electricity,petroleum,mines,ports,heating,gas,water supply,sewage treatment,metallurgy,papermaking,textiles,chemicals and water conservancy.In addition,it is also used in power plants and petrochemical industries where there are strict requirements for data acquisition and equipment monitoring.

In summary,the Bently Nevada 3500/15 127610-01 is a powerful,stable and reliable AC power module suitable for various vibration monitoring systems and industrial automation applications.
