Bently Nevada 3500 Series Monitoring System Components Overview

Bently Nevada's 3500 Series is a leading-edge system designed for industrial monitoring, providing real-time measurement and protection of critical machinery. The series offers a range of modules and sensors tailored for vibration, temperature, position, and speed monitoring. Below is a selection of key components that are essential for the effective operation of the Bently Nevada 3500 monitoring system.

106M1079-01 3500/15 AC Power Supply

This AC power supply module is crucial for powering the 3500 monitoring system. It ensures stable operation by providing the necessary AC power to the system, ensuring continuous monitoring of critical machinery.

133835-01 3500/60 TC Isolated I/O Module

This module is used for integrating temperature sensors, with isolation between the input and output circuits. It is ideal for applications where temperature monitoring and signal integrity are critical.

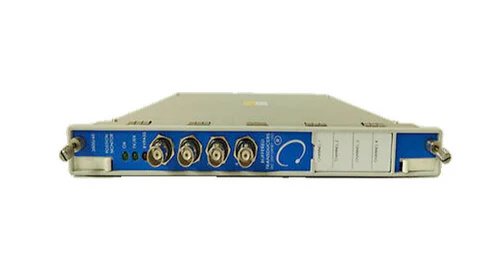

176449-04 3500/45 Position Monitor

The 3500/45 Position Monitor provides precise position measurements for rotating machinery. It plays a key role in ensuring the alignment and operational safety of industrial equipment.

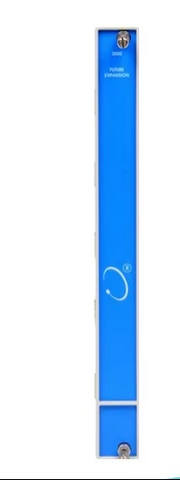

128275-01 Future Expansion Faceplate

This faceplate allows for future expansion of the Bently Nevada 3500 system, providing additional slots for modules as the needs of your operation grow.

172103-01 RTD/Isolated Tip TC I/O Module

Designed for use with RTD and thermocouple temperature sensors, this isolated I/O module ensures accurate readings by isolating the signals from environmental interference.

145988-02 Temperature Monitor

The Temperature Monitor is essential for monitoring the temperature of machinery, providing alarms and warnings when thresholds are exceeded, and helping to prevent damage due to overheating.

149992-01 Spare 16-Channel Relay Output Module

This module offers 16 relay channels for outputting alarms or other control signals. It serves as a vital component for automation systems where rapid response to faults is necessary.

163179-03 3500/62 Monitor

The 3500/62 Monitor provides comprehensive monitoring of machinery conditions, including vibration, temperature, and displacement, ensuring proactive maintenance and reducing downtime.

125672-02 Proximitor/Seismic Monitor

This monitor is used to detect seismic movements and proximity changes, which is crucial in applications involving heavy machinery or sensitive equipment.

These components work together within the Bently Nevada 3500 system to provide continuous, real-time monitoring, protecting machinery, optimizing operational efficiency, and ensuring the safety of industrial operations. Each part plays a vital role in delivering robust machinery protection.
