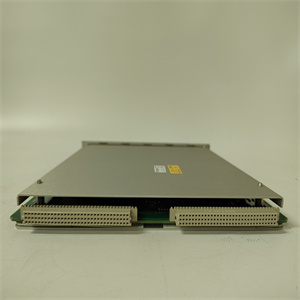

Bently Nevada 3500/60 Temperature Monitor Product Introduction
the Bently Nevada 3500/60 Temperature Monitor is a six-channel temperature monitoring system designed for use in harsh industrial environments. It accepts RTD or thermocouple inputs and conditions the signals to provide accurate temperature measurements. The 3500/60 can be used to monitor a variety of temperatures, including bearing temperatures, process temperatures, and ambient temperatures.
The 3500/60 is a versatile and reliable temperature monitoring system that can be used in a wide variety of applications. It is commonly used in the following industries
- Oil and gas
- Power generation
- Pulp and paper
- Chemical processing
- Manufacturing
Product Parameters
- Product Name Bently Nevada 3500/60 Temperature Monitor
- Part Number 163179-01
- Number of Channels 6
- Input Signal RTD or Thermocouple
- Input Impedance 10 MΩ for each lead input
- Power Consumption 7 watts
-
Temperature Range
-
RTDs:
- 100Ω 3-wire & 4-wire platinum RTD (α = 0.00385): -200°C to +850°C (-328°F to +1562°F)
- 100Ω 3-wire & 4-wire platinum RTD (α = 0.00392): -200°C to +700°C (-328°F to +1292°F)
- 120Ω 3-wire & 4-wire nickel RTD: -80°C to +260°C (-112°F to +500°F)
- 10Ω 3-wire & 4-wire copper RTD: -100°C to +260°C (-148°F to +500°F)
-
Thermocouples:
- Type E: -100°C to +1000°C (-148°F to +1832°F)
-
RTDs:
- Accuracy ±0.25% of full scale
- Resolution 0.1°C (0.18°F)
-
Outputs
- Alarm relays
- Analog outputs (optional)
- Communication Ethernet (optional)
Features
- Six channels of temperature monitoring
- Accepts RTD or thermocouple inputs
- Wide temperature range
- High accuracy and resolution
- Alarm relays and analog outputs (optional)
- Ethernet communication (optional)
- Rugged and reliable construction
Benefits
- Protects machinery from damage due to overheating
- Improves process efficiency
- Reduces maintenance costs
- Extends machine life
Applications
- Bearing temperature monitoring
- Process temperature monitoring
- Ambient temperature monitoring
Additional Information
For more information on the Bently Nevada 3500/60 Temperature Monitor, please refer to the following resources
- Bently Nevada 3500/60 Temperature Monitor Datasheet
- Bently Nevada 3500 Machinery Protection Systems
Bently Nevada 3500/60 163179-01
The BENTLY 3500/60 163179-01 module is a module produced by Bently Nevada in the United States, typically used in industrial automation and control systems. The following is a detailed answer to this module. 1、 Basic information Brand and
