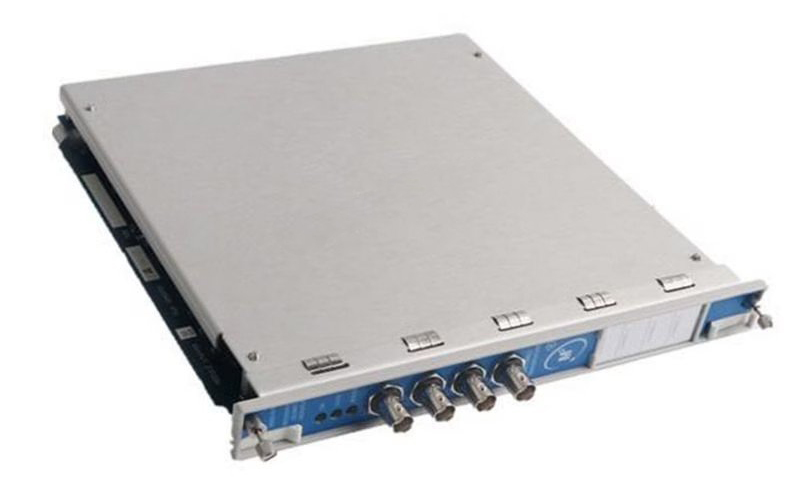

Bently Nevada 133811-02 Temperature Monitor
Brand:Bently Nevada
Model Number:133811-02
Type:Temperature Monitor
Product Origin:USA
Payment:T/T, Western Union, Credit Card
Dimensions:241.3 mm × 24.4 mm × 241.8 mm
Weight:0.91 kg
Price:USD185
Certificate:CE
Warranty:1 year
Product Description
The Bently Nevada 133811-02 is a six-channel temperature monitoring module. Engineers use it in harsh industrial environments. It monitors the temperature of critical rotating components like bearings, motors, and gearboxes. This module belongs to the 3500/61 series. It supports both RTD (Resistance Temperature Detector) and thermocouple (TC) inputs. Therefore, it offers flexibility for a wide range of industrial temperature sensing applications.
Input Channels
- Number of Channels: 6
Input Types
- RTD:
Supports platinum RTDs (e.g., 100Ω, 3-wire and 4-wire, α = 0.00385), nickel, and copper types
RTD Range: –200°C to +850°C (–328°F to +1562°F)
- Thermocouple:
Supports types E, J, K, T, C, R, S, B
TC Range: –200°C to +1500°C (–328°F to +2732°F)
Accuracy and Resolution
- General Accuracy: ±0.25% of full scale
- Alarm Accuracy: ±0.13% of setpoint
- Resolution: 0.1°C
Electrical Characteristics
- Input Impedance: >10 MΩ per lead
- Channel Isolation (TC version): 250 VDC
Environmental Specifications
- Operating Temperature: –30°C to +65°C (–22°F to +150°F)
- Storage Temperature: –40°C to +85°C (–40°F to +185°F)
Power and Dimensions
- Power Consumption: Approximately 9 W
- Dimensions:
- Height: 241.3 mm (9.50 in)
- Width: 24.4 mm (0.96 in)
- Depth: 241.8 mm (9.52 in)
- Weight: 0.91 kg
