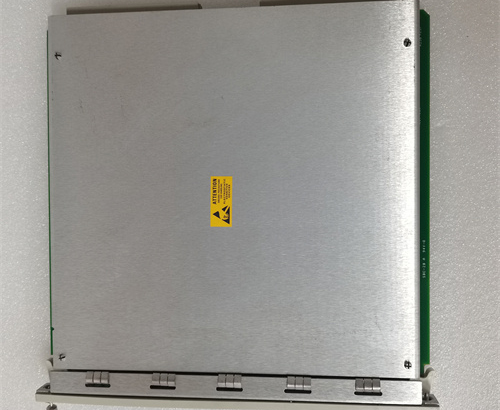

BENTLY 3500/33 149986-01 Product Details

BENTLY 3500/33 149986-01 is a channel relay module,which is usually used in mechanical equipment monitoring and protection systems in the industrial field.The following is a detailed analysis of the module.

Basic information

Model and number:BENTLY 3500/33 149986-01.

Manufacturer:Bently Nevada(now part of GE).

Functional characteristics

Mechanical equipment monitoring:This module can be used to monitor various parameters of mechanical equipment,such as vibration,temperature,pressure,etc.,which helps to detect abnormal equipment operation status in time.

Mechanical equipment protection:By monitoring the equipment status,the relay module can trigger protection measures,such as cutting off power or taking other emergency shutdown measures to prevent equipment damage or accidents.

Vibration monitoring:In a vibration monitoring system,the relay module may be used to detect that the vibration of the equipment exceeds a predetermined threshold and issue an alarm or perform an action.

Temperature control:This module can be used to monitor the temperature of the equipment and trigger corresponding control and protection measures when the temperature is abnormal.

Data acquisition and analysis:The relay module can be used to collect the monitored data for real-time analysis,fault diagnosis and maintenance planning.

Remote monitoring and control:Some systems may support remote monitoring and control,enabling operators to monitor equipment status and take necessary actions through remote access.

Technical specifications

Number of channels:Typically 16 relay outputs are provided,each of which can be independently programmed.

Alarm drive logic:Each relay has”alarm drive logic”that can be programmed with”AND gate”and”OR gate”logic to meet special needs in the application.

Interface:It has a communication interface that can transmit vibration data to the monitoring system or control room.

Working environment:Adapt to various environmental conditions,including high temperature,high pressure and harsh industrial environment.

Application field

This module is widely used in power plants,oil and gas production,chemical plants,manufacturing and other industrial fields to ensure the safe and reliable operation of equipment.
