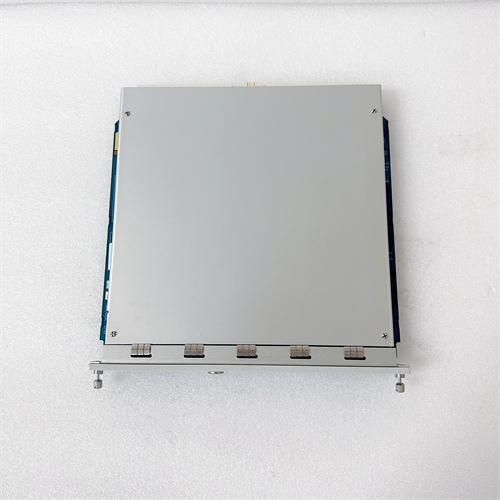

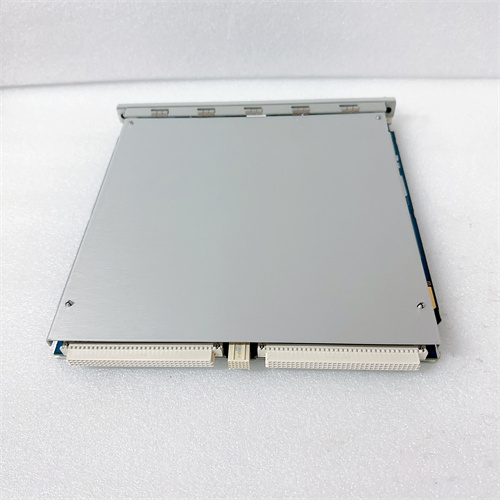

BENTLY 3500/22M 288055-01 Product Overview

3500/22M 288055-01 is a transient data interface module produced by Bently Nevada.The following is a detailed introduction to the module.

Basic Overview

Manufacturer:Bently Nevada

No.:288055-01

Origin:United States

Main Functions

Vibration Monitoring:The module has a high-precision vibration monitoring function and can monitor the vibration of the equipment in real time,including parameters such as vibration velocity,acceleration and displacement.

Fault Diagnosis:By collecting and analyzing vibration data,the module can identify and diagnose mechanical faults such as bearing wear,imbalance,looseness,etc.,and issue alarms or trigger maintenance operations in time.

Data Communication:As a transient data interface module,it supports data interaction and integration with other monitoring systems or control systems to achieve real-time data transmission and sharing.

Technical Features

High Reliability:The module has high reliability and stability,is suitable for long-term operation in industrial environments,and can effectively monitor and protect the operating status of key equipment.

Flexible configuration:Provides a variety of configuration options that can be customized according to specific application requirements,including the number of input channels,sampling rate,alarm settings,etc.

Modular design:Supports modular design and can be combined with other Bently Nevada monitoring modules to build a more comprehensive monitoring system.

Interface and connection

Interface type:The module is equipped with a USB-B interface on the front panel and supports Ethernet connection,including 10Base-T or 100Base-TX adaptive Ethernet and 100Base-FX fiber optic Ethernet.

Connection method:In the 3500 rack,the module is located in the slot next to the power supply and connects to the M series monitor(such as 3500/40M,3500/42M,etc.)to continuously collect steady-state and transient dynamic(waveform)data.

Physical parameters

Dimensions:24.18 cm long,2.44 cm wide,and 24.13 cm high.

Weight:0.91 kg for TDI module and 0.20 kg for I/O module.

Application Scenarios

The 3500/22M 288055-01 module is widely used in complex industrial environments such as manufacturing,energy,and transportation for real-time monitoring and fault diagnosis of equipment to ensure stable operation and production efficiency of equipment.
