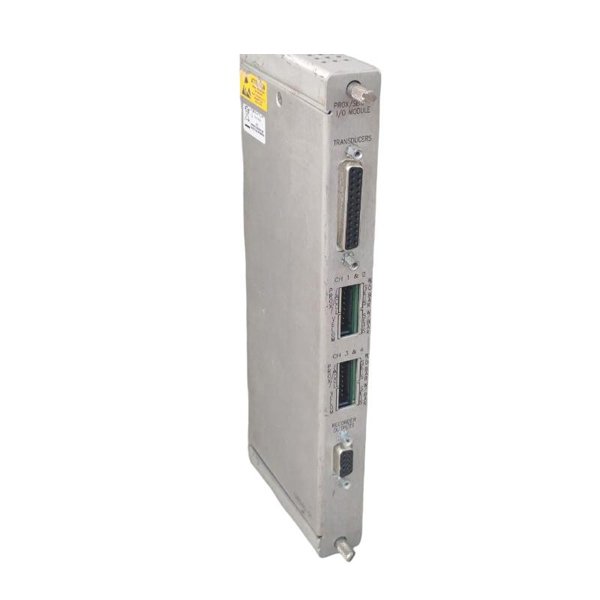

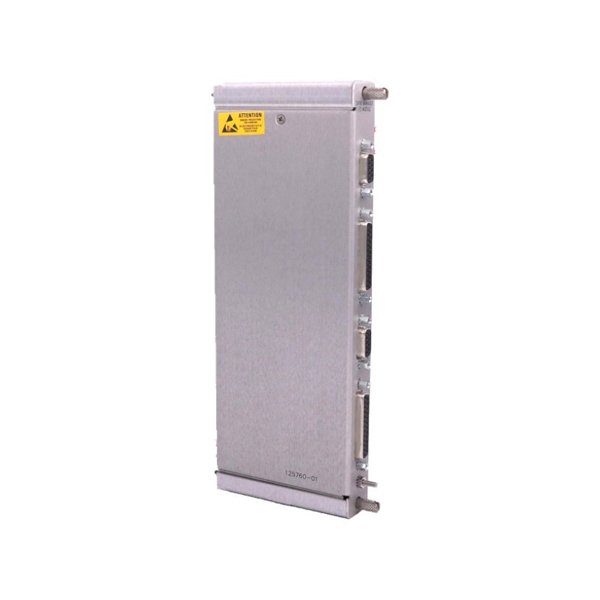

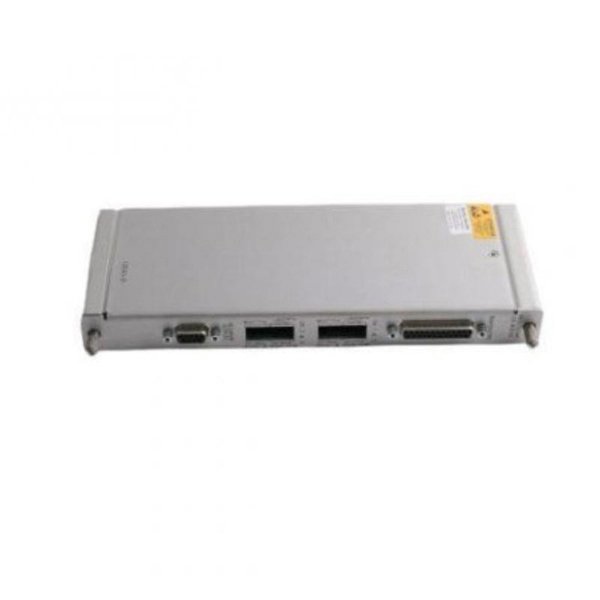

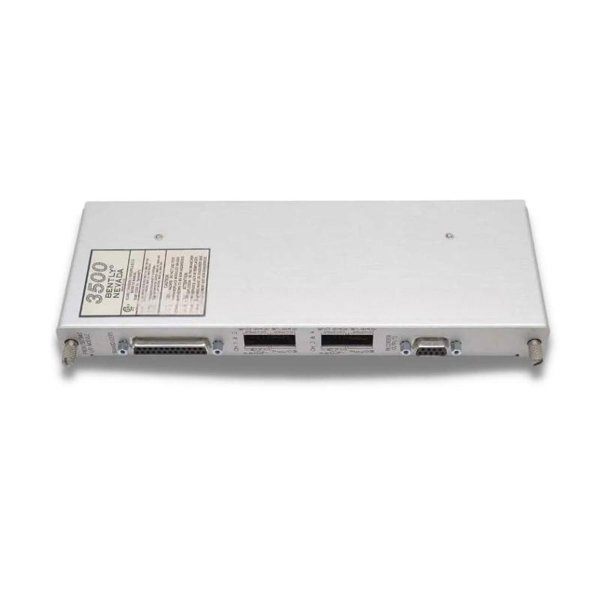

Bently Nevada 3500/42M 128240-01 Proximitor Seismic I/O Module

The Bently Nevada 3500/42M 128240-01 is a Proximitor/Seismic Monitor I/O Module designed for the 3500 Machinery Protection System. This four-channel module interfaces with proximity and seismic transducers to monitor critical machinery parameters. It processes the signals to provide vibration and position measurements, compares them with user-programmable alarm setpoints, and communicates essential machine information to operations and maintenance personnel.

Product Specifications

Product Applications

The 3500/42M 128240-01 module is utilized in various industrial applications, including:

• Power Generation: Monitoring turbines, generators, and pumps to ensure operational efficiency and prevent downtime.

• Oil & Gas: Protecting critical equipment such as compressors and expanders in upstream and downstream operations.

• Chemical Processing: Ensuring the integrity of reactors, mixers, and other machinery in chemical plants.

• Mining: Monitoring crushers, mills, and conveyors to maintain continuous production.

In these sectors, the module helps in early detection of faults, reducing maintenance costs and enhancing equipment lifespan.

Product Advantages

• Comprehensive Monitoring: Simultaneously monitors multiple parameters such as radial vibration, thrust position, differential expansion, and eccentricity.

• User-Configurable Alarms: Allows setting of alert and danger setpoints for each channel, providing tailored protection.

• Signal Conditioning: Processes input signals to generate various parameters, ensuring accurate measurements.

• Robust Design: Built to withstand harsh industrial environments with a wide operating temperature range.

• Seamless Integration: Compatible with the 3500 Rack Configuration Software for easy setup and monitoring.

Frequently Asked Questions (FAQs)

1. What is the Bently Nevada 3500/42M 128240-01 module?

   • It is a four-channel Proximitor/Seismic Monitor I/O Module designed for the 3500 Machinery Protection System.

2. What types of transducers can be connected?

   • Supports proximity, velocity, acceleration, and seismic transducers.

3. What is the storage temperature range?

   • The module can be stored between -40°C and +85°C.

4. How much does the module weigh?

   • It weighs 0.46 kg.

5. What is the humidity tolerance?

   • It operates in environments with up to 95% non-condensing humidity.

6. How many channels does the module have?

   • The module provides four channels for monitoring.

7. What is the rack space requirement?

   • Requires one full-height rear slot in the 3500 rack.

8. Is it compatible with other Bently Nevada modules?

   • Yes, it integrates seamlessly with other modules in the 3500 series.

9. What software versions are compatible?

   • Compatible with 3500/01 Software v2.50 or later.

10. How long is the warranty period?

    • The standard warranty is 1 years, subject to proper usage and conditions.
