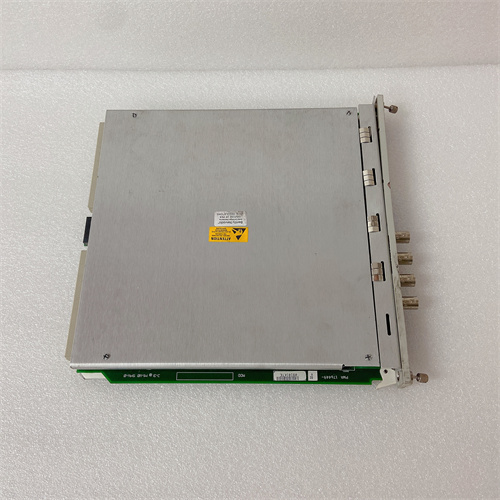

BENTLY 3500 42M 176449-02 Detailed Introduction

The BENTLY 3500 42M 176449-02 module is a shaft vibration monitoring module produced by Bently Nevada,designed for radial vibration,axial displacement,eccentricity,REBAM and differential expansion measurement.The module has the characteristics of high accuracy,high reliability and flexibility,and can meet the shaft vibration monitoring needs of equipment such as large gas and steam turbines.

Main Features

Multi-channel monitoring

This module is a configurable 4-channel monitor module that can monitor multiple parameters simultaneously to improve the efficiency of testing and measurement.

Various input types

In addition to receiving eddy current sensor input types,the module can also receive velocity,acceleration and dual probe(velocity and displacement)input types and their related signal conditioning,such as filtering and integration.

Differential signal processing

The module can perform differential signal processing to extract the housing vibration signal from the relative vibration of the shaft,providing key information for absolute shaft measurement of some large gas and steam turbines.

High-precision measurement

The module provides up to 24-bit resolution and low noise level for accurate analog signal measurement.

Its excellent linearity and low drift performance ensure accurate measurement results over a wide dynamic range.

Flexible input range

BENTLY 3500 42M 176449-02 supports a variety of adjustable input ranges to meet the amplitude requirements of different signal sources,enhancing the flexibility and accuracy of measurement.

Built-in calibration function

The module has a built-in automatic calibration function to ensure the accuracy and reliability of each channel during the measurement process.

In addition,it also supports standard calibration procedures to further ensure the consistency and accuracy of measurement results.

High-speed data transmission

Adopting the PXIe bus interface,the module can achieve high-speed data transmission,ensuring that the collected data can be quickly transferred to the computer for processing and analysis.

Application Field

BENTLY 3500 42M 176449-02 module is widely used in shaft vibration monitoring of large gas and steam turbines.It can monitor the vibration status of equipment in real time,prevent failures,and improve the reliability and safety of equipment.

4.Product Advantages

High performance:The module has high accuracy,high reliability and stability,and can meet the needs of shaft vibration monitoring in complex industrial environments.

Flexibility:Supports multiple input types and adjustable input ranges,and can adapt to the monitoring needs of different equipment.

Ease of use:With an intuitive interface and easy-to-set programming functions,it reduces the difficulty and cost of operation.
