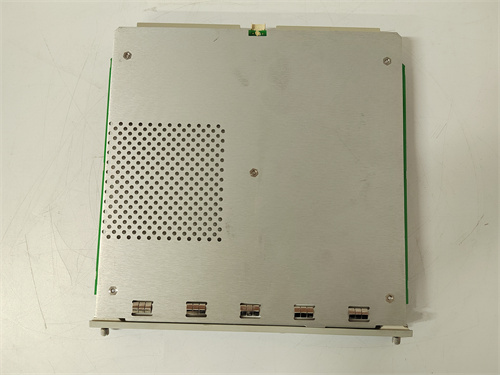

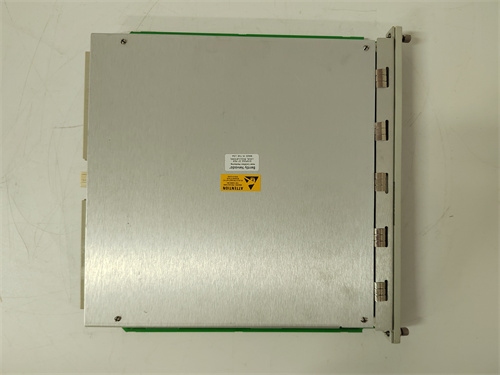

BENTLY 3500 22M 138607-01 Product Details

BENTLY 3500 22M 138607-01(3500/22M for short)is a control pulse card module produced by BENTLY for pulse control and counting applications in industrial automation systems.As an interface between the 3500 monitoring system and compatible software(such as System 1 status monitoring and diagnostic software and 3500 system configuration software),the module has the characteristics of high precision,multi-channel support,flexibility,programmability and high reliability.

Technical Features

High Precision:The 3500/22M control pulse card can provide high-precision pulse signal control and counting functions to ensure accurate pulse control and measurement.

Multi-channel support:The card usually provides multiple independent pulse input and output channels to support multi-channel pulse control and counting requirements.

Flexibility:3500/22M has flexible configuration options and parameter settings to meet the needs of different application scenarios.

Programmability:The card supports programmable logic functions and control strategies,and can be customized according to specific needs.

High reliability:3500/22M is designed to be stable and reliable,with good anti-interference ability and long life,suitable for long-term operation in industrial environments.

Functions and Applications

Transient Data Interface(TDI)Function

The 3500/22M transient data interface(TDI)combines the functions of the 3500/20 rack interface module(RIM)and the data acquisition capabilities of a communication processor(such as TDXnet).

TDI is installed in the slot adjacent to the 3500 cabinet power supply and interfaces with M series monitors(such as 3500/40M,3500/42M,etc.)to continuously collect steady-state and transient dynamic(waveform)data.

These data are passed to the host software via an Ethernet link for status monitoring and fault diagnosis.

Application fields

3500/22M control pulse cards are widely used in industrial automation,including but not limited to pulse control and counting applications,speed and position measurement,stepper motor control,positioning and timing applications,and frequency metering and measurement.

Product parameters

Input voltage:100~240V AC

Output voltage:24V DC

Output current:5A

Rated power:120W

Operating temperature:-10℃~+60℃

Dimensions:85mm x 125mm x 75mm(or width 53mm,height 125mm,depth 260mm,may vary depending on the specific installation method)
