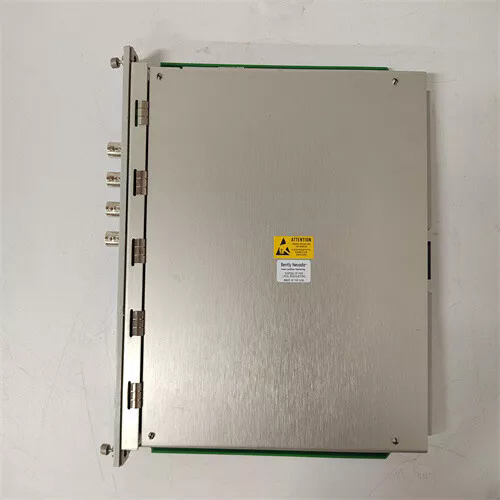

Bently 3500/45 176449-04 Position Monitor Module Detailed Technical Overview

Bently Nevada 3500/45 176449-04 Position Monitor Module is a module in the 3500 series monitoring system dedicated to real-time monitoring of key parameters such as device position, vibration, displacement, etc.

This module uses high-precision sensors and data processing technology to help users accurately monitor rotating machinery,The key moving components in equipment such as fans, pumps, compressors, etc., ensure the stability and safety of the equipment during operation.

Product Features

High precision position monitoring

It can accurately monitor the position of components in rotating machinery, especially suitable for important components such as shafts and rotors.

Provide real-time displacement data to help identify possible offsets, misalignment, or abnormal wear.

Wide compatibility

Can be used in conjunction with other Bently Nevada 3500 series modules to facilitate the construction of a complete monitoring system.

Support multiple types of sensor inputs, such as eddy current sensors, laser sensors, etc., to meet different application requirements.

Flexible configuration and easy installation

Modular design, supporting flexible input and output configurations.

Easy to install and maintain, suitable for various complex work environments.

technical specifications

Input channels: Up to 8 channels can be supported (the specific number depends on the configuration).

Sensor type: Compatible with multiple types of sensors, including eddy current, laser, displacement sensors, etc.

Alarm type: It has multi-level alarm function and can set alarm levels of Alert and Danger.

Signal processing: Built in digital signal processor (DSP) for real-time data processing.

Working temperature range:- 30 ° C to+65 ° C.

Power supply method: Powered by the 3500 system mainframe.

Environmental adaptability: able to work stably in harsh environments such as high temperature, humidity, and vibration.

Data output interface: supports integration with industrial control systems such as SCADA and DCS, enabling data transmission and remote monitoring.
