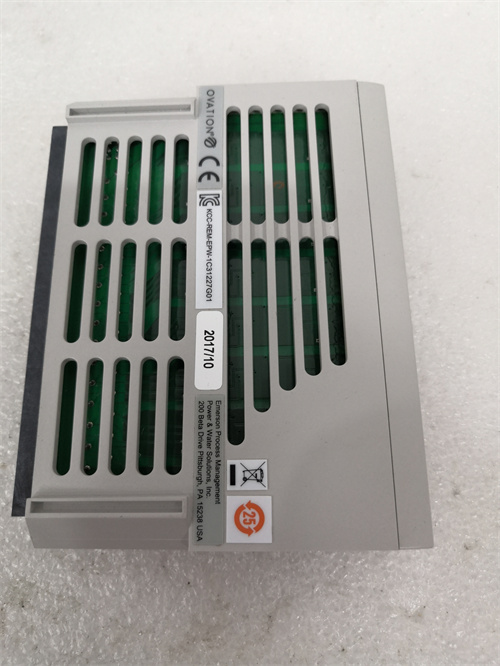

WESTINGHOUSE 1C31227G01 Product Overview

WESTINGHOUSE 1C31227G01 module is a high-performance analog input module produced by Westinghouse(Westinghouse Electric Company).This module is specially designed to receive various input signals,such as AC and DC voltage and current,frequency,temperature(thermocouple and RTD)and process sensor signals,and provide standard 420mA or 010Vdc signal output.

Main Features

Multi-channel input:The 1C31227G01 module has multiple analog current input channels and can simultaneously receive analog current signals sent by multiple external devices.

High-precision conversion:The module has high-precision signal conversion capabilities and can accurately convert analog current signals into digital quantities to ensure data accuracy and reliability.

Signal Isolation:Provides up to 3500Veff isolation between input signal,output signal and power supply,effectively preventing possible harmful voltage from being applied to the connected system through the signal conditioner,reducing the impact of ground loops and electrical noise,and improving measurement accuracy.

Field Configuration:The signal range can be configured on site,which is convenient for users to adjust according to actual needs.

Easy to install:The module has a modern housing design and can be easily installed on a standard 35mm DIN rail.At the same time,the pluggable screw terminal connector provides a safe and reliable connection.

Real-time Monitoring:The 1C31227G01 module can monitor the analog current signals of each input channel in real time,and transmit the converted digital signals to the control system to achieve real-time monitoring of the production process.

Technical Specifications

Brand:WESTINGHOUSE

Model:1C31227G01

Output frequency:usually 350kHz(may vary from product to product)

Working voltage:generally 220V(may vary from product to product)

Input signal type:including voltage,current,frequency,resistance,potentiometer,thermocouple,RTD and weighing sensor,etc.

Output signal type:420mA current signal or 010Vdc voltage signal(pre-configured before leaving the factory,but the output signal can be changed by changing the internal jumper)

Application field

WESTINGHOUSE 1C31227G01 analog input module is suitable for various industrial control and automation applications,such as chemical,electric power,manufacturing and other fields.It can realize the accurate acquisition and conversion of various analog signals,and provide accurate and reliable data support for the control system.
