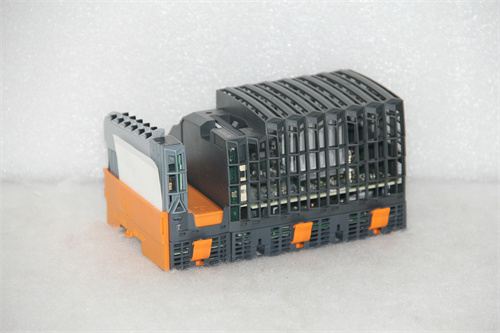

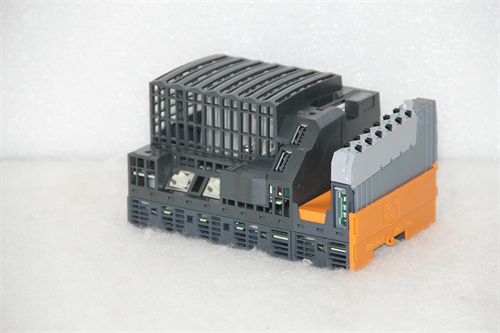

B&R X20CP1584 Detailed Introduction

B&R X20CP1584 is a CPU controller module launched by B&R.The following is a detailed introduction to it.

Product Overview

Brand:B&R

Model:X20CP1584

Origin:May be produced in Switzerland or Austria(information provided by different suppliers may vary)

Type:CPU controller module

Technical specifications and parameters

Processor:Intel Celeron 100MHz(or Intel Atom 600 MHz,different information may vary)

Memory:May be equipped with 256MB DDR2 SDRAM(specific memory size may vary depending on product batches)

Interfaces

1 RS232 interface

1 Ethernet interface(10/100/1000BASE-T)

1 POWERLINK interface(V1/V2)

2 USB interfaces

1 X2X Link interface

Expansion slot:1 interface module expansion slot(supports RS232,RS422,RS385,CAN,Profibus-DP,etc.)

Power supply:Input voltage 24VDC(-15%/20%),input current 2.2A,fuse integrated and non-replaceable

Other parameters

Fanless operation

Compact size,easy to install

Flexible expansion,suitable for a variety of application scenarios

Product features and advantages

High performance:X20CP1584 is equipped with a high-performance processor and large-capacity memory,which can meet the needs of various complex application scenarios.

Real-time:Supports real-time Ethernet EthernetPOWERLINK connection(EPL framework protocol support)to ensure the real-time and reliability of data transmission.

Easy to expand:Through the interface module expansion slot,other functional modules can be easily expanded to improve the flexibility and scalability of the equipment.

Fanless operation:The product adopts a fanless design,which reduces noise and failure points,and improves the stability and reliability of the equipment.

Application Fields

Industrial Automation:X20CP1584 is widely used in the field of industrial automation.As a controller module for various automation equipment,it provides strong support for the stable operation of the equipment.

Mechanical Equipment Control:Suitable for the control of small and medium-sized mechanical equipment,as well as slave station control in process control.

Other Fields:It can also be applied to embedded systems,monitoring systems and other fields,providing reliable controller module support for various application scenarios.
