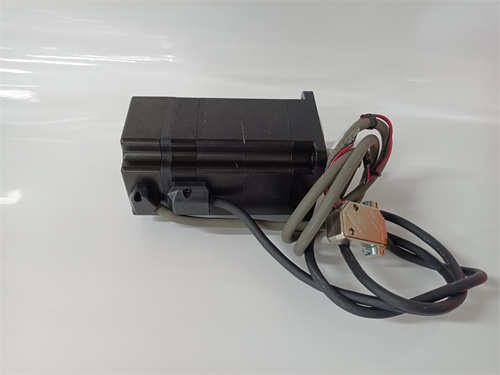

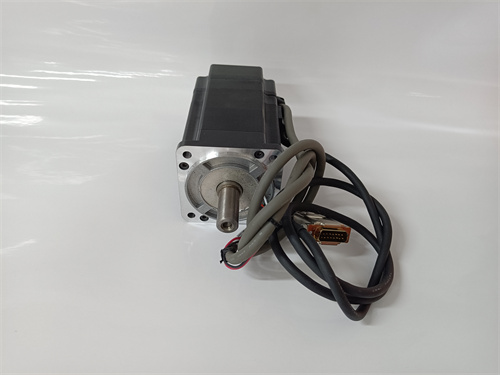

RELIANCE Y-3023-2-H00AA Product Details

RELIANCE Y-3023-2-H00AA brushless servo motor is manufactured by RELIANCE Electric and is designed for industrial automation,robotics and other fields.The motor combines advanced electronic technology and precision mechanical design,has excellent control accuracy,stability and reliability,and can meet various complex application requirements.

Main Features

Brushless design

The brushless structure reduces mechanical wear and noise,and improves the service life and performance stability of the motor.

High-precision control

It has high-precision position,speed and acceleration control capabilities,which can achieve precise motion control.

High dynamic performance

Fast response time and high acceleration can meet various dynamic control requirements.

Closed-loop control system

Adopting a closed-loop control system,the encoder provides real-time feedback on the motor motion state to achieve higher control accuracy and stability.

High torque density

Provides large output torque in a relatively small volume,suitable for various load requirements.

Strong position holding ability

Even when the movement stops,it can maintain a low position error.

Product Specifications

Frame size:3023

Working voltage:230V AC

Maximum radial load:35 kg

Number of poles:8 poles

Encoder resolution:2000 P/R

Rated speed:4500 RPM

Enclosure protection level:IP43

Working temperature range:0 to 40 degrees Celsius(32 to 104 degrees Fahrenheit)

Dimensions:140 x 80 x 80 mm(5.57 x 3.15 x 3.15 inches)

Shaft diameter:16 mm(0.63 inches)

Application areas

Industrial automation

Used for precise control of automated production lines such as assembly lines and conveyor lines.

Robots

As a joint drive motor of the robot,it realizes precise movement and positioning of the robot.

Machining

Used for precise control of equipment such as CNC machine tools and machining centers to improve processing accuracy and efficiency.

Other fields

Also suitable for automated control systems in industries such as mining,petroleum,aluminum,and transportation.

Precautions for use

Servo drive

The RELIANCE Y-3023-2-H00AA brushless servo motor requires a servo drive to complete the servo drive positioning system.Recommended servo drive models include 1398-DDM-019,1398-DDM-020,2093-AM02,2094-AM02 or 2098-DSD-020.

System connection

When connecting and using the servo motor,ensure that the system connection to the servo motor shaft is rigid to prevent the coupling,pulley or belt from slipping for a long time and causing shaft aging.

Connecting cable

The connecting cable should be as short as possible to reduce interference and signal loss.

Technical specifications and applications

The technical specifications and typical applications of the product system must be strictly observed.

Personnel training

Only trained personnel can install,operate,maintain or repair the product system.These personnel must receive guidance and a brief introduction to the conditions in hazardous areas.

Modification and maintenance

No modifications or structural changes shall be made to the product system.It must be ensured that the product system is used only under appropriate conditions and is in a fully suitable condition for use.

Working environment

The user must meet the specified environmental conditions and avoid exposing it to high humidity or high ambient temperature.
