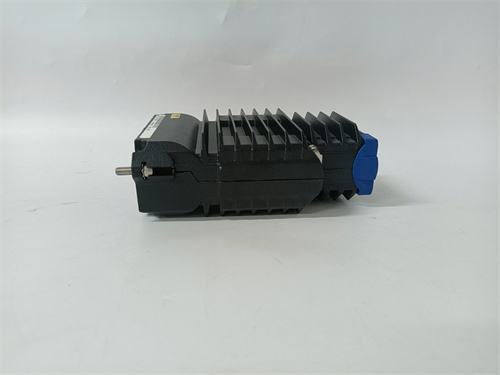

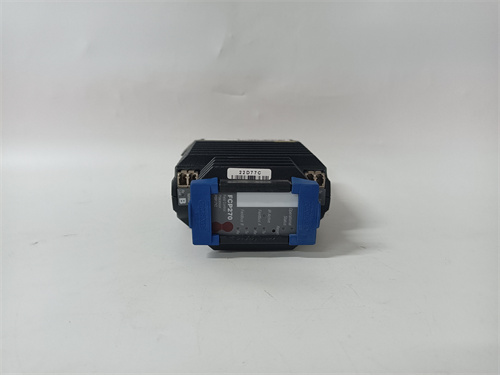

Foxboro FCP270 Product Overview

Foxboro FCP270(Field Control Processor 270)is a distributed,optionally fault-tolerant field-mounted controller module.It works with the connected fieldbus module(FBM)to perform regulation,logic,timing and sequential control,while supporting functions such as data acquisition,alarm detection and notification.

Main Features

High Performance and Reliability

FCP270 has high processing power and data processing speed,can quickly respond to various control needs and achieve real-time control.

The unique patented fault-tolerant operation design greatly improves the continuity and stability of the system.The fault-tolerant version consists of two modules running in parallel.When one module fails,the other module can immediately take over the work.

Communication and Connection

Connect to the Foxboro Evo control network via standard fiber optic 100Mbps Ethernet,supporting high-speed data transmission and remote monitoring.

Supports up to 32 200 series FBMs(including compact and standard types),and can also support up to 128 200 series FBMs and up to 64 100 series FBMs through the fieldbus expansion module 100(FEM100).

Environmental adaptability

The rugged die-cast aluminum housing can be installed in a non-ventilated field cabinet and can operate in a G3-level harsh environment.

CE certification ensures product safety and reliability.

Easy to configure and manage

Provides a friendly user interface and configuration tools so that users can easily configure and manage.

Supports remote monitoring and management,allowing users to monitor and manage the system anytime,anywhere.

Scalability

The FCP270 module has good scalability and can be integrated and expanded with other Foxboro devices or systems as needed to achieve more complex and advanced control functions.

Technical specifications

Memory:Usually equipped with a certain amount of memory,such as 16MB SDRAM and 32MB flash memory,for storing programs and data.

Input voltage:The redundant voltage is 24V DC typical.

Power consumption:The maximum power consumption of each non-fault-tolerant module is 8.5W.

Operating temperature:It can operate normally in the range of 0 to+60 degrees Celsius(+32 to+140 degrees Fahrenheit).

Dimensions and weight:The dimensions are approximately 14.7 cm x 5.15 cm x 11.4 cm,and the weight is approximately 0.6 kg(shipping weight is 1.5 kg).

Application areas

Foxboro FCP270 is widely used in industrial automation and process control fields,such as chemical,petrochemical,electric power,manufacturing and other industries.It can realize accurate data acquisition,processing and transmission,and provide strong support for system control and management.At the same time,due to its high reliability and redundant design,the system can operate stably in harsh working environments to ensure the continuity and safety of production.
