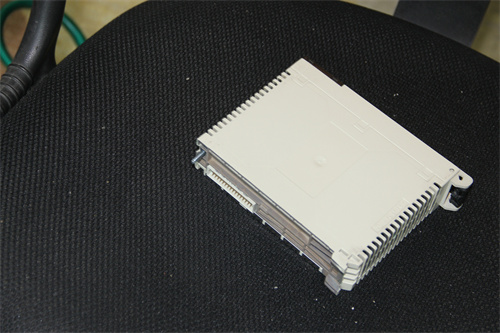

Schneider TSXDEY16D2 Detailed Introduction

TSXDEY16D2 is a discrete input module in Schneider’s Modicon Premium automation platform.It has 16 isolated input channels and is suitable for various industrial automation and control systems.

Main features

High isolation:Each input channel has an isolation function to ensure the stability and safety of signal transmission.

Multiple input voltages:Supports multiple input voltage ranges,such as 24V(positive logic),etc.,which can be selected according to actual needs.

Fast response:With fast isolation input function,the filtering range is from 0.1 to 7.5ms,which can trigger event tasks and improve the response speed of the system.

Modular design:The modular design is adopted for easy installation and maintenance,and can be expanded according to system requirements.

Multiple diagnostic functions:Provide module diagnosis,process diagnosis and other functions,which can monitor the working status of the module and the quality of the input signal in real time.

Technical parameters

Input voltage/modularity(number of channels):24V(positive logic)/16 isolated inputs

Working voltage:Depends on the specific application scenario

Working temperature:Depends on the specific application scenario

Size:Depends on the specific product model

Weight:Depends on the specific product model

Application field

TSXDEY16D2 is widely used in factory automation,process control,data acquisition systems and other fields.It can be used to monitor and control various discrete signals,such as switch status,sensor signals,etc.
