Schneider 140ACO13000 Product Introduction

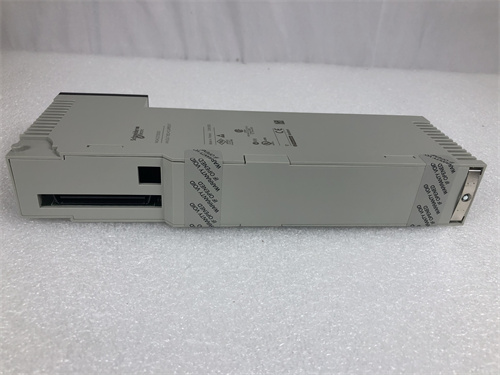

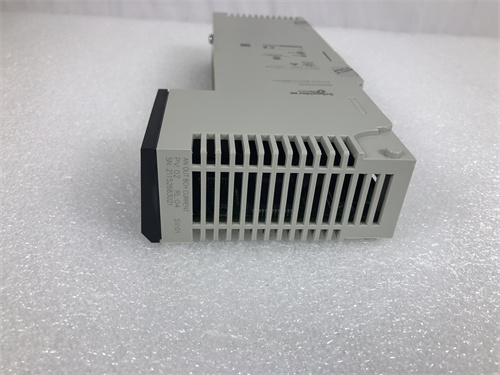

SCHNEIDER 140ACO13000 is an analog output module manufactured by Schneider Electric.The following is a detailed introduction to the product.

Basic information

Product name:140ACO13000

Brand:Schneider

Model:140ACO13000

Series:Modicon Quantum ExoStruxure control series

Technical specifications

Number of analog output channels:8

Analog output type:high density

Output range

420mA,04095 counts

420mA,016000 counts

025mA,025000 counts

020mA,020000 counts

Loop voltage:6~30V DC

Voltage drop:6~30V,25mA

Absolute accuracy error:±0.2%full scale(at 25°C)

Linearity:±4µA(420mA,016000 counts)etc.

Temperature offset accuracy:maximum 0.004%full scale/°C(typical)

Insulation between each channel and the bus:1780V for 1 minute AC

Update time:5ms

Setup time:1.6ms to 5%final value,3.2ms to±0.1%final value

Power consumption:5W

External power supply requirement:6~30V

Functions and features

Configurable UnityPro software

LED indicator shows module status,including bus communication,channel open,channel fault,etc.

Configuration can be modified online

Passed multiple certifications,including UL 508,CSA 22.2-142,FM Class 1 Zone 2,ATEX Zone 2/22,etc.

Application scenarios

The module is made in France and is designed for use in material handling,packaging and textile machinery.It is also suitable for the Modicon Quantum automation platform.
