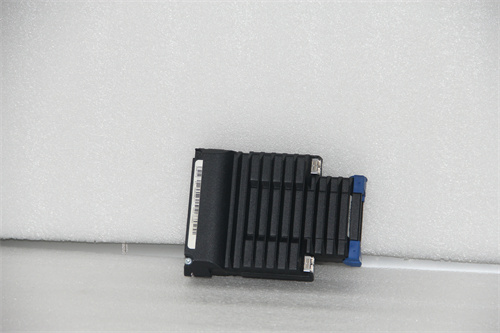

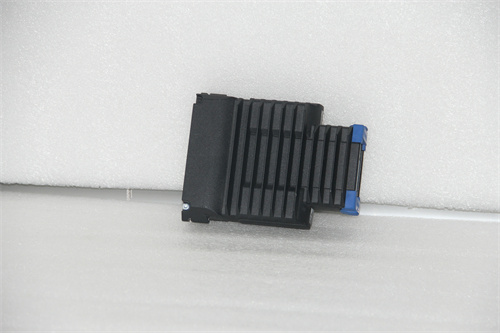

FOXBORO FCP270 Product Details

FOXBORO FCP270 is a distributed,optionally fault-tolerant field-mounted controller module that is widely used in industrial automation and process control systems.The following is a detailed introduction to FOXBORO FCP270.

Main Features

Distributed control:As a field control processor,FCP270 is an integral part of a highly distributed control network.In this network,the controller works closely with specific process units installed close to its I/O and actual controlled equipment to achieve distributed control.

Fault-tolerant design:FCP270’s unique patented fault-tolerant operation greatly improves reliability.The fault-tolerant version of FCP270 consists of two modules running in parallel,connected to the Foxboro Evo control network via two Ethernet networks.The controller can still operate continuously when a hardware failure occurs in one of the modules.

Multiple communication interfaces:FCP270 has a variety of communication interfaces,such as CAN,Profibus,Profinet,etc.,which can connect and communicate with different types of field devices to meet the needs of various application scenarios.

High performance:FCP270 can receive various signal inputs and perform corresponding control operations according to the set logic and algorithms.At the same time,it also supports functions such as data acquisition,alarm detection and notification.

Functions and Support

Performing control tasks:FCP270 performs regulation,logic,timing and sequence control together with the connected fieldbus module(FBM).

Number of FBMs supported

Supports up to 32 200 series FBMs(including compact and standard types).

Supports up to 128 200 series FBMs(compact or standard types)through the fieldbus expansion module 100(FEM100).

Supports up to 64 100 series FBMs.

Network connection:Connects to the Foxboro Evo control network via standard fiber optic 100 Mbps Ethernet.

Work in harsh environments:Adopts a rugged die-cast aluminum housing and can operate in G3-level harsh environments.

Certification and installation:CE-certified,can be installed in the cabinet on site,and can be installed without expensive dedicated cabinets to prevent electronic radiation.

Application Fields

FCP270 is widely used in various industrial automation and process control systems,including but not limited to the following fields

Manufacturing:such as automobile manufacturing,electronic manufacturing,food processing and pharmaceutical fields,to realize automated manufacturing processes.

Power industry:used to monitor power equipment,power systems and generators.

Building automation:used in building management systems to control equipment such as lighting,HVAC,security systems and elevators to improve the energy efficiency and comfort of buildings.

Medical equipment:used to control medical imaging equipment,surgical robots and laboratory equipment.

Traffic systems:used for traffic management and traffic signal control to ensure smooth and safe traffic.

Environmental monitoring:used to control and monitor parameters such as atmosphere,water quality,soil and noise levels.

Agriculture:used to control irrigation systems,feed processing equipment and greenhouse automation.

Technical features and advantages

High reliability:The system reliability is improved through patented fault-tolerant operation and redundant design.

High precision:using advanced electronic technology and design concepts to achieve precise control and signal processing.

Quick response:able to respond to various control needs in real time to ensure the stability and real-time performance of the system.

Easy maintenance:modular design makes it easy to disassemble and replace components,reducing maintenance costs.
