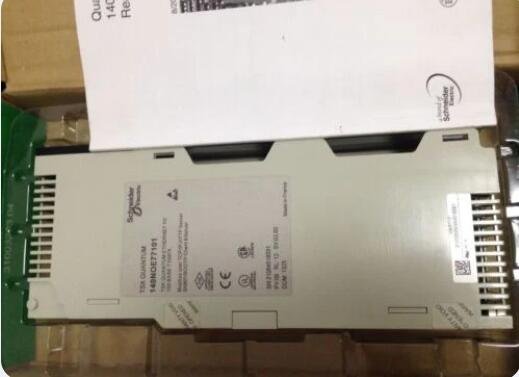

Schneider 140NOE77101 Product Introduction

140NOE77101 is a high-performance Ethernet network module.The following is a detailed introduction to the module.

Basic information

Product name:140NOE77101 Ethernet module

Brand and series:Schneider Modicon Quantum series

Type:Ethernet TCP/IP module

Technical specifications

Physical interface

The front panel contains MT-RJ terminals and RJ45 connection ports.

The RJ45 interface supports 10BASE-T/100BASE-TX twisted pairs,and the MT/RJ interface supports 100BASE-FX optical fiber.

Transmission rate:10/100Mbit/s

Communication protocol:Ethernet Modbus TCP/IP

Grade:B30

Functions and applications

Function:140NOE77101 Ethernet module provides physical connection and data transmission functions between devices and Ethernet.It can communicate with other devices through the Ethernet protocol to achieve data exchange and sharing between devices.

Application:This module is widely used in various devices,such as industrial automation equipment,embedded systems,network equipment,sensors,etc.They can be connected to the network via Ethernet to realize remote monitoring,data acquisition,control and other functions of the equipment.
