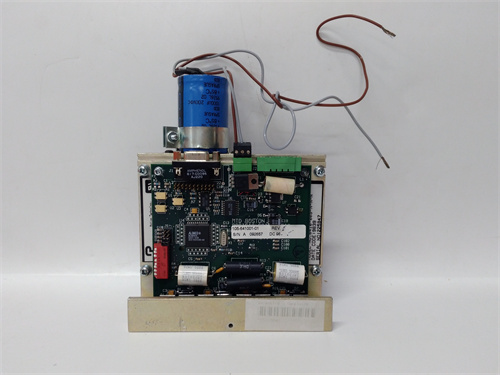

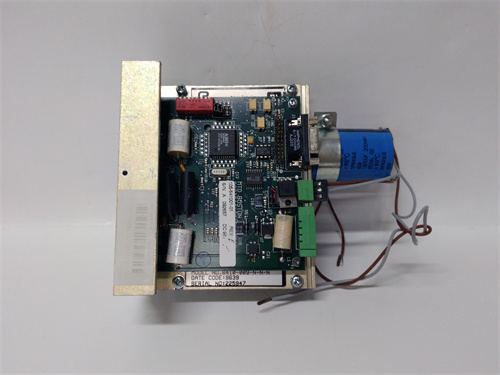

Pacific Scientific 6410-009-N-N-N Product Overview

Pacific Scientific 6410-009-N-N-N is a stepper driver/controller produced by Pacific Scientific(now possibly owned by Kollmorgen or related brands),belonging to the 6410 series.This product is used to convert step and direction inputs into winding currents for two-phase stepper motors,and is suitable for various industrial automation and process control applications that require precise position control.

Main Features

High precision:The step accuracy can reach 256 microsteps/turn,meeting the needs of high-precision position control.

High torque:It has a wide torque range to meet various load requirements.

Fast response:It has a fast response speed and is suitable for control systems that require fast response.

Easy to use:It is simple to operate,easy to set up and adjust,and convenient for users to debug and maintain.

Multiple functions:It provides multiple functions such as speed and height control,pulse generator,electronic gear,etc.to meet the needs of different application scenarios.

Technical Specifications

Power supply

Single power input,voltage range is 24 to 75Vdc.

Current

Peak power level is 7.1A.

Root mean square(rms)current is 5A.

Output current can be adjusted in the range of 0.625 to 5A rms,and the default output current is 5A rms.

Drive mode

Adopts 4-phase bipolar chopper drive,with smooth operation and higher resolution.

Other specifications

May have cover options without cover,heat sink options without heat sink,and connector kit options without connector kit(depending on product configuration).

Application fields

Pacific Scientific 6410-009-N-N-N stepper driver/controller is widely used in the following fields

CNC machine tools:used to accurately control the movement of processing tools to ensure processing accuracy.

Mechanical packaging:In packaging machinery,it is used to control the conveying and positioning of packaging materials.

Printing machinery:In the printing process,it is used to accurately control the position and speed of the print head.

Robots:As part of the servo system,it realizes the precise movement and positioning of the robot.

Semiconductor manufacturing equipment:Various equipment and processes used to precisely control the semiconductor manufacturing process.
