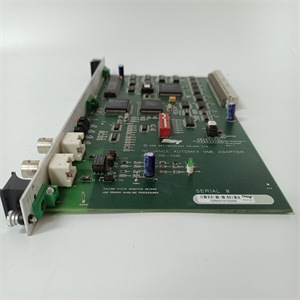

‌ABB 5136-RE-VME Product Details‌

The ABB 5136-RE-VME is a powerful CPU module designed specifically for industrial automation applications. Belonging to the 6U VME interface card series, it offers a comprehensive set of features that make it an ideal choice for various high-performance tasks.

Product Parameters & Specifications

Processor: Equipped with a 16 MHz V40 microprocessor integrated with 128K RAM, ensuring efficient data processing and instruction execution

DeviceNet Compatibility: Features a 5-pin CAN connector, enabling seamless communication with DeviceNet and other CAN-based networks. Supports CAN data rates up to 1 megabaud, compatible with standard DeviceNet rates of 125, 250, and 500 kilobaud

Memory Address: Offers a software-selectable memory address function, allowing for flexible memory allocation and management

Physical Attributes

Dimensions: Measures 6U in size, making it compatible with standard VMEbus systems

Weight: Weighs approximately 200 grams, ensuring lightweight yet durable construction

Series & Features

Series: Part of the 6U VME interface card series, designed for industrial automation, robot control, and other high-performance applications

Scalability: Can be easily expanded with standard Pluto servo drives using the flat cable included in the development kit, allowing for flexible system configurations

Bus Support: Supports VME64x standard, including VME64x bus exchange, interrupt, and reset

Applications

The ABB 5136-RE-VME CPU module is widely used in various industries such as military, aerospace, power, and surveillance, where high-speed communication and reliable data processing are crucial.
