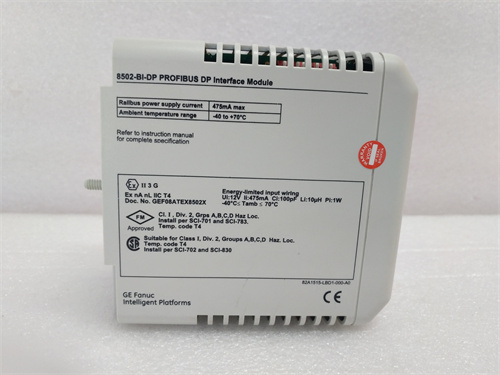

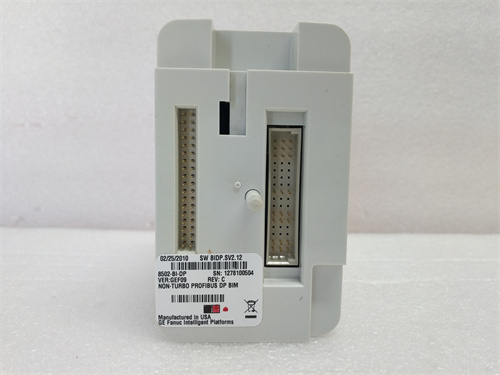

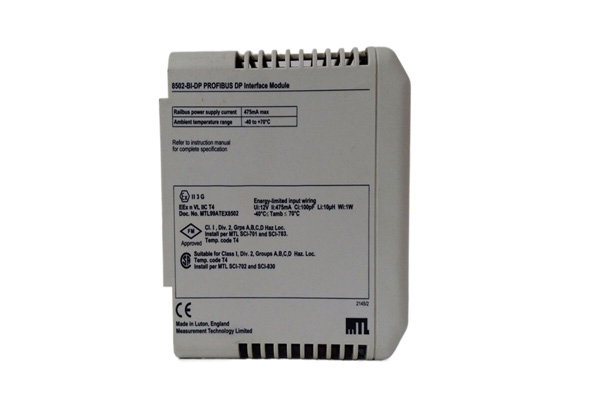

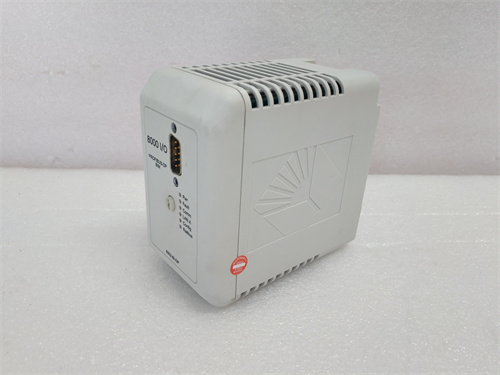

MTL 8502-BI-DP Product Detailed Description

MTL 8502-BI-DP is a bus interface module (BIM) designed for MTL 8000 series I/O modules, mainly used to connect MTL 8000 nodes to Profibus-DP master stations. It provides an efficient and reliable way to transmit analog and digital signals on site to the host computer through the Profibus-DP protocol to achieve control and monitoring of industrial processes.

Main functions

Profibus-DP interface: Provides Profibus-DP interface, connects to the Profibus-DP master station, and realizes communication with the host computer.

Support for MTL 8000 series I/O modules: Supports connection of multiple MTL 8000 series I/O modules to expand the number of I/O points of the system.

HART protocol support: Supports HART protocol, and variables of HART devices can be transmitted through Profibus-DP.

Parameter configuration: Supports parameter configuration from the Profibus-DP master station.

Diagnostic function: Provides a wealth of diagnostic functions to facilitate fault diagnosis.

Application scenarios

Process control: Used in process control systems to connect various sensors, actuators and other equipment.

Data acquisition: Used in data acquisition systems to collect various data.

Safety instrument system: Used in safety instrument systems to achieve safety interlocking functions.

Product features

High reliability: Suitable for harsh industrial environments with high reliability.

Flexible configuration: Supports multiple configuration methods to meet different application requirements.

Easy maintenance: Provides a wealth of diagnostic functions for easy maintenance.

Compliant with standards: Complies with the Profibus-DP protocol standard.
