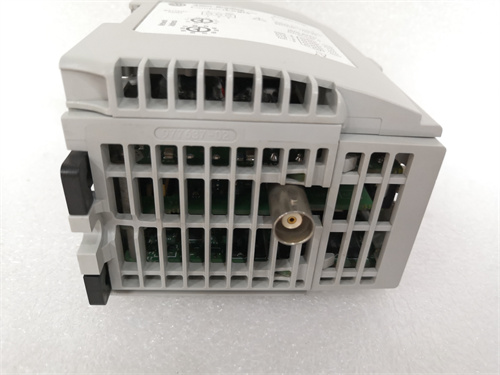

AB 1769-L32C Product Overview

1769-L32C is a CompactLogix controller produced by Allen-Bradley/Rockwell Automation.The following is a detailed introduction to it.

Main features and functions

Modular design:allows users to independently select I/O(input/output),terminal type and network interface,making module assembly and maintenance more convenient and flexible to configure according to specific needs.

Compact structure:With compact size,it is suitable for installation in limited space,which helps to reduce the footprint of equipment and improve space utilization.

Powerful network connectivity:supports multiple network protocols such as ControlNet™,DeviceNet™and EtherNet/IP™,which facilitates communication and data exchange with other devices.

Smart component technology:Some modules use DeviceLogix™smart component technology,which integrates low-cost logic solving capabilities into I/O,helping to shorten the time from perception to execution and improve system response speed.

Easy to maintain:The detachable wire system design of the module saves time and money during installation and troubleshooting.In addition,its hot plug-in/unplug(RIUP)function allows modules to be replaced during system operation without downtime,thereby improving system availability and maintainability.

Flexible installation options:supports horizontal or vertical installation without derating,adapting to different installation environments and space constraints.

Highly integrated:can be seamlessly integrated with Rockwell Automation’s PLC(Programmable Logic Controller)and programming software,such as user-defined profiles in RSLogix 5000 programming software,which can be smoothly integrated into the entire system.

Technical specifications

Storage capacity:750 KB user memory,which can store data and use it as a backup,and all operations are automatic.

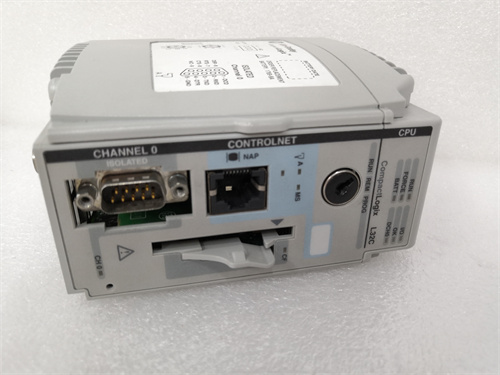

Communication port:supports RS-232,NAP and ControlNet ports.

I/O module:supports up to 16 I/O modules.

Power requirements:The baseboard current is 650mA at 5V DC and 40mA at 24V DC.

Power consumption:The power consumption of the logic module is 4.21W.

Operating temperature range:0 to 60°C.

Relative humidity:5%to 95%.

Status indicator:Provides status indicators to display power failure,improper placement of modules on the rack,or major and minor faults.

Application scenarios

The 1769-L32C controller is suitable for industrial automation applications that require ControlNet networks,such as production line automation,mechanical equipment control,process flow management,etc.It can be used to control valve position,adjust flow,monitor temperature and other physical quantities,providing reliable,efficient and flexible solutions for industrial automation and control systems.
