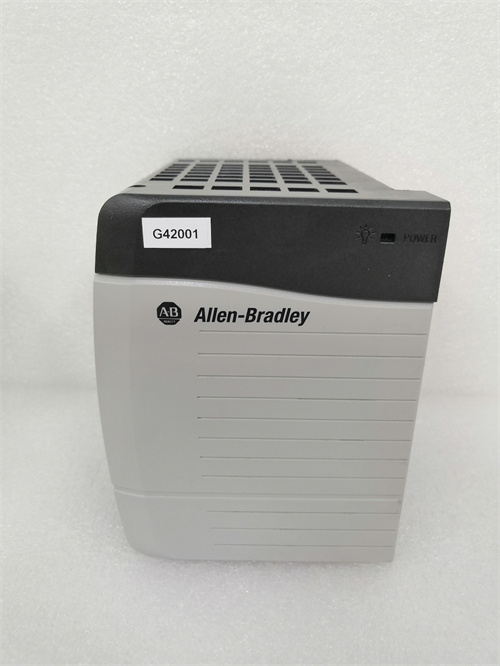

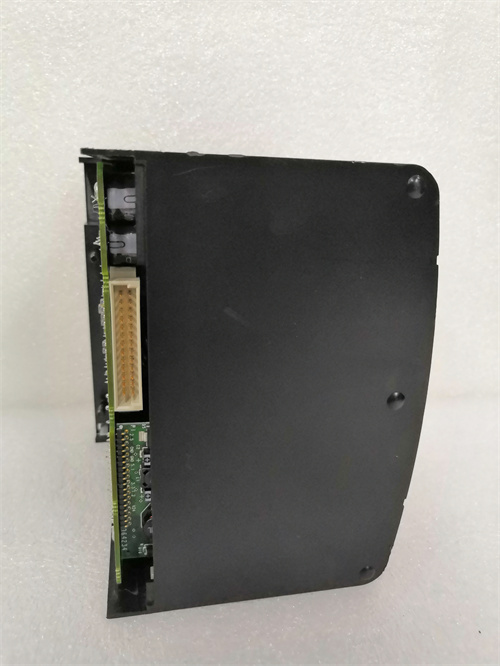

AB 1756-PA72 Product Introduction

1756-PA72 is a product under the Allen-Bradley brand,produced by Rockwell Automation.It has multiple functions and uses.The following is a detailed introduction to 1756-PA72.

Product Overview

Product Series:1756-PA72 belongs to the ControlLogix series.

Main Function:1756-PA72 can be used as a DC power supply module or a channel analog output module.

As a DC power supply module

Purpose:Specially designed to provide power for modules and devices in the ControlLogix series.

Compatibility:Can be integrated with other modules and devices in the ControlLogix series to build a complete industrial automation and control system.

Technical specifications:Including input voltage,current capacity,etc.,which determine the performance of the power supply module and the number of other devices that can be supported.

Redundant configuration:Supports redundant configuration so that when one power supply module fails,the system can continue to operate with backup power.

Indicator light:Usually equipped with an indicator light to display the working status of the module,such as normal operation or failure.

Safety certification:Meet specific safety and certification standards to ensure reliability and safety in industrial environments.

Application scenarios:Widely used in various industrial automation and control fields,including manufacturing,process control,power management,etc.

As a channel analog output module

Number of channels:It has 8 analog output channels.

Resolution:Each channel has 16-bit resolution.

Signal range:The voltage range is 0 to 10V,and the current range is 0 to 20mA.

Signal format:Supports voltage and current signal formats.

Wiring method:DIN rail wiring is used.

Operating temperature:-40°C to+85°C.

Communication protocol:Supports Modbus RTU communication protocol.

Application scenarios:Suitable for control systems,mechanical control,and industrial automation fields,providing reliable analog output to meet various application requirements.

Other features

Compact design:Suitable for application environments with limited space,easy installation and wiring.

Flexible I/O configuration:Supports a variety of I/O modules,and users can choose different types of modules according to specific application requirements.

Multiple communication interfaces:such as serial port,Ethernet,etc.,which facilitate data exchange and communication with other devices.

Easy-to-use programming environment:Usually use Rockwell Automation programming software for program development and debugging.

Reliability and flexibility:It has stable performance and reliability,and provides a variety of expansion options to meet different application requirements.
