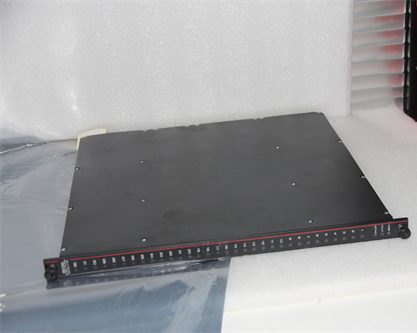

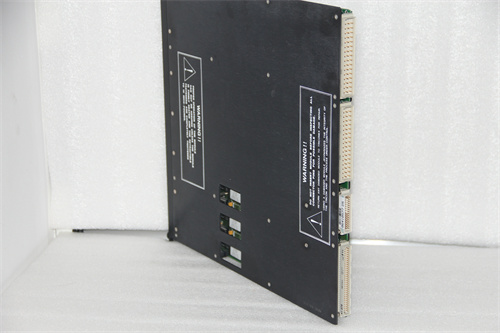

TRICON 3503E Detailed Information

The TRICON 3503E digital input module is designed for process control in extreme environments and has high reliability and powerful input processing capabilities.It adopts a modular design for easy maintenance and replacement,and provides self-diagnosis functions to monitor the working status of the module in real time to ensure the stable operation of the system.

Technical Specifications

Number of input channels:32

Input signal type:supports a variety of input signal types,including 24VDC,48VDC,125VDC and 125VAC,etc.,to meet the needs of different industrial sites.

Input voltage range

DC voltage input range:20-42.5VDC

AC voltage input range:10-42.5VAC

Channel isolation voltage:up to 250V,effectively preventing signal interference and improving the system’s anti-interference ability and reliability.

Self-check function:With self-check function,it can detect stuck open or stuck closed,and promptly find and report faults.

TMR(Triple Modular Redundancy):Provides three independent channels for each input signal to improve system availability and reliability.

Product Features

High reliability:TRICON 3503E inherits the consistent high reliability characteristics of Triconex products and is suitable for various harsh environments.

Powerful input processing capabilities:Supports multiple input signal types,and the input status of each channel can be intuitively displayed through the LED indicator,which is convenient for users to quickly judge the signal input situation.

High isolation voltage:Provides up to 250V inter-channel isolation voltage to effectively prevent system failures caused by signal interference.

Flexible configuration:Supports software configuration,users can flexibly adjust the type and parameters of input signals according to actual needs,and improve the versatility and adaptability of the equipment.

Multiple safety standard certifications:Passed multiple safety standard certifications,including SIL3 and IEC 61508,etc.,to ensure the safety and reliability of the product.

Application scenarios

TRICON 3503E digital input modules are widely used in various industrial fields,such as petrochemical,power,manufacturing,etc.In the field of petrochemicals,it is used to monitor and control key parameters such as temperature,pressure,and liquid level;in power systems,it is used to monitor the operating status of equipment such as generator sets and substations;in manufacturing automation production lines,it is used to collect and process various sensor signals to achieve automatic control and status monitoring of equipment.

In summary,the TRICON 3503E digital input module has been widely used in the field of industrial automation due to its excellent performance and reliability.Its high reliability,powerful input processing capability,high isolation voltage,flexible configuration,and multiple safety standard certifications make it an ideal choice for various industrial applications.
