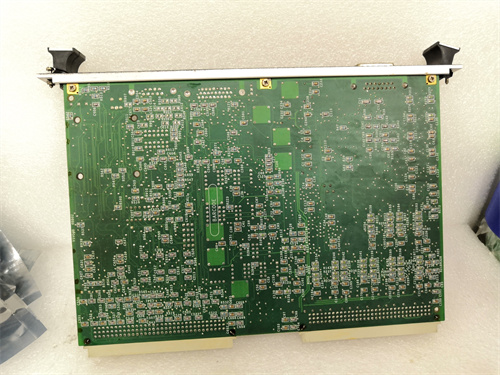

GE IS200VSVOH1BDC Product Overview

GE IS200VSVOH1BDC is an industrial automation control component produced by General Electric(GE).The following is a detailed introduction to the component.

Basic information

Model:IS200VSVOH1BDC

Version:BDC

Manufacturer:General Electric(GE)Industrial Systems

Technical specifications and functions

Number of coil servos:2 or 3(3 when TMR is applied)

Pulse rate input frequency range:2~14k Hz

LED indicator:3,indicating operation,fault,and status

Prime mover type:steam turbine or gas turbine

Input/output:designed for servo valve interface applications,can receive pulse rate(speed)input for shunt feedback in servo loop

Speed​​sensor connection:can connect passive or active speed sensors,and can support two additional passive speed sensors when used with backup protection module

High-precision control:through advanced algorithms and hardware design,high-precision control of servo motors is achieved to meet the needs of various industrial applications

Dynamic response:with fast dynamic response capability,it can respond to system changes in a short time to ensure system stability and accuracy

Energy efficiency:optimize motor operating parameters,reduce energy consumption,and improve energy efficiency

Fault diagnosis:built-in fault diagnosis function,can promptly detect and report system faults,convenient maintenance and repair

Application scenario

GE IS200VSVOH1BDC servo control card is widely used in various industrial fields that require high-precision motion control,such as

Mechanical processing:CNC machine tools,robots,etc.

Automated production lines:assembly lines,packaging lines,etc.

Printing equipment:printing machines,labeling machines,etc.

Textile machinery:spinning machines,looms,etc.

Physical and electrical characteristics

Specifications:may vary depending on the specific application scenario,such as the specifications of a certain product are 20×30×1mm

Input voltage:110V~380V(may vary depending on the specific model)

Current:1A~30A(may vary depending on the specific model)

Power:5W~130W(may vary depending on the specific model)

Output frequency:may vary depending on the specific application and configuration,such as the output frequency of a certain product is 60/70Hz or 620kHz
