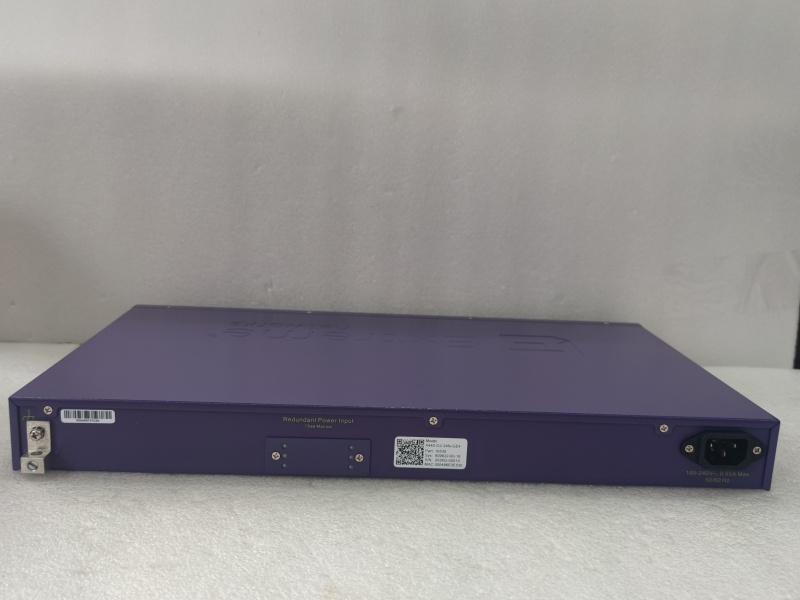

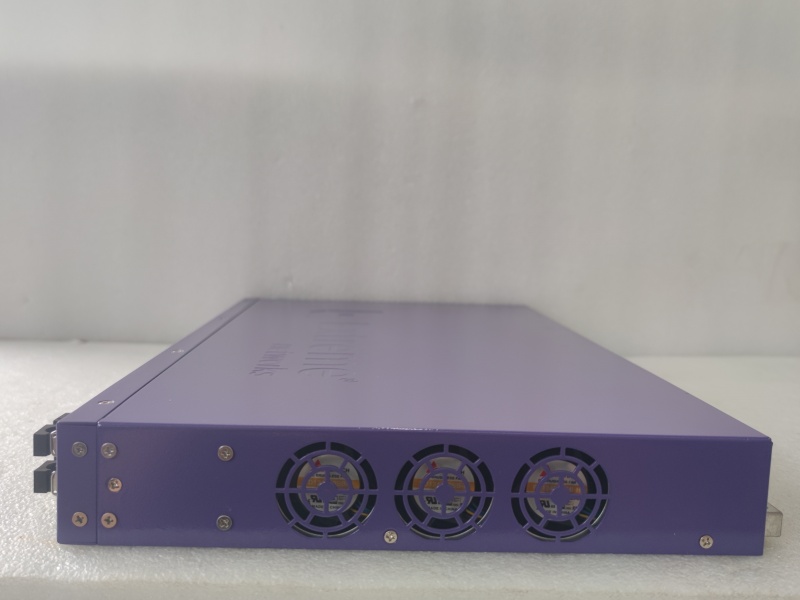

EXTREME X440-24X-10G Product Introduction

EXTREME X440-24X-10G is a three-layer stackable Gigabit Ethernet switch launched by Extreme Networks in the United States,designed specifically for high-performance data centers,cloud computing,and enterprise networks.This product has the core advantages of high-density ports,flexible scalability,and intelligent network management,supporting efficient deployment and operation in complex network scenarios.

Main features and advantages

High density ports and scalability:Provides 24 10/100/1000BASE-T ports,supports PoE+/PoE power supply,can connect wireless APs,IP phones,IP cameras and other devices;Equipped with 4 1000BASE-X MiniGBIC ports and 2 10GBASE-X SFP+10G upstream ports,supporting 40Gbps stacking expansion to meet high bandwidth requirements.

Intelligent Network Management:Equipped with the ExtremeXOS operating system,it supports modular configuration,automatic restart,and process isolation to ensure network stability.Compatible with SDN(Software Defined Networking)through the OpenFlow protocol,achieving deep integration with cloud platforms such as OpenStack and enhancing automation management capabilities.

High performance processing capability:Switching capacity≥88Gbps,packet forwarding rate≥65Mpps,supporting Jumbo Frame(up to 9200 bytes)and IEEE 802.1Qav/1Qat audio and video bridging technology(AVB),ensuring real-time audio and video streaming quality.

Safety and reliability

Identity aware security:supports fine-grained port security policies,including MAC address binding,DHCP anti spoofing,and multi endpoint authentication,to prevent man in the middle attacks.

Redundant design:Optional redundant power configuration,combined with spanning tree protocol(PVST+/MSTP)and Ethernet automatic protection switching(50ms level self-healing),enhances network reliability.

Flexible networking and compatibility:Supports VLAN(up to 4094),cross chassis link aggregation(LACP),and VRRP virtual routing redundancy,compatible with traditional network protocols(such as RIP,OSPF)and IPv6 routing,and adaptable to hybrid network environments.

Technical specifications

Model:X440-24X-10G

Port configuration

24 10/100/1000BASE-T ports(supporting PoE+/PoE)

4 1000BASE-X MiniGBIC ports

2 10GBASE-X SFP+ports

Exchange capacity:≥88Gbps

Packet forwarding rate:≥65Mpps

Protocol support

Layer 2:IEEE 802.1D/1Q/1X,Spanning Tree Protocol(PVST+/MSTP)

Three layers:static routing RIP、OSPF、VRRP

Security:802.1X,DHCP Snooping,CPU DoS Protection

Management function

Supports HTTP/SNMP/RMON,Command Line Interface(CLI),and SummitStack stack management

Implement local/remote configuration through Console port or serial tool(such as SecureCRT)

Application areas

Data center:As an access layer switch,it connects server nodes and provides 10 Gigabit uplink,supporting virtualization and cloud computing environments.

Enterprise network:deployed at the core of the park network to achieve high-density terminal access(such as IP phones,wireless APs)and cross departmental VLAN partitioning.

Intelligent Building:Integrated PoE+power supply function,supporting unified management of IoT devices such as IP cameras and sensors.

Industrial automation:Adapt to real-time data transmission requirements in factory automation systems through high reliability and anti-interference design.
