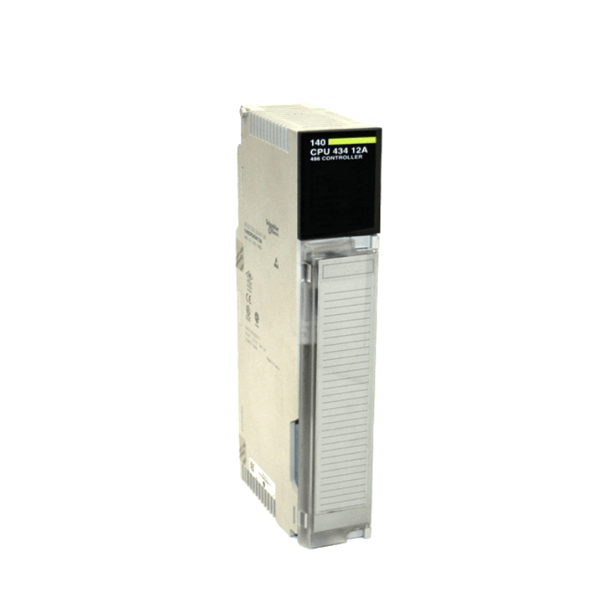

Schneider 140CPU43412A Product Introduction

140CPU43412A is a central processing unit produced byElectric.It is mainly used in industrial automation and control systems,responsible for executing complex control logic,data processing and communication tasks.

Technical specifications

Model:140CPU43412A

Clock pulse frequency:66 MHz

Memory:Internal RAM 896 kB

Precise time:0.1~0.5 ms for 1 K instruction

Watchdog clock:250 ms

Clock error:+/-8 seconds/day(within a specific temperature and voltage range)

Input and output bytes

Local:30(w32o distributed 64 l64O maximum local 64 l64O remote)

Network:500 I/500O distributed

Network capacity

Number of remote networks:2

Number of distributed networks:3

Supported network modules:Up to six(including Modbus Plus,Ethernet and multi-axis motion option modules)

Communication interface

Modbusplus interface:1

Modbus RS232 interface:2

Battery:1.2Ah lithium battery,battery life up to 10 years

Product features

High performance:With powerful processing power and high-speed data transmission rate,it can meet the high performance requirements of industrial automation systems.

High reliability:Made of high-quality materials and advanced production processes,it has high reliability and stability.At the same time,the processor is also equipped with a key switch to protect the memory from programming changes when the controller is running,further improving its reliability.

Easy to expand:Supports a variety of network and I/O modules,which is convenient for users to expand and upgrade according to actual needs.

Easy to maintain:All modules support hot-swap function,and modules can be replaced or maintained while the system is running,reducing system downtime.At the same time,the processor is also equipped with a single slide switch and address switch,which is convenient for users to set communication parameters and address settings.

Rich communication interface:Supports a variety of communication protocols and interfaces,such as Modbus Plus,Ethernet,etc.,which is convenient for integration and communication with other devices and systems.

Application scenarios

140CPU43412A is widely used in industrial automation,including manufacturing,power,water treatment,traffic control,building automation,etc.It can be used as a core component of the control system to realize the monitoring and control of various equipment and processes,and improve production efficiency and quality.
