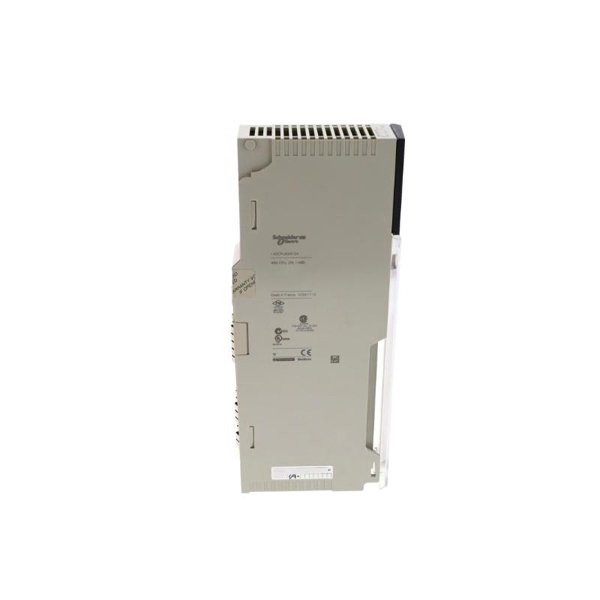

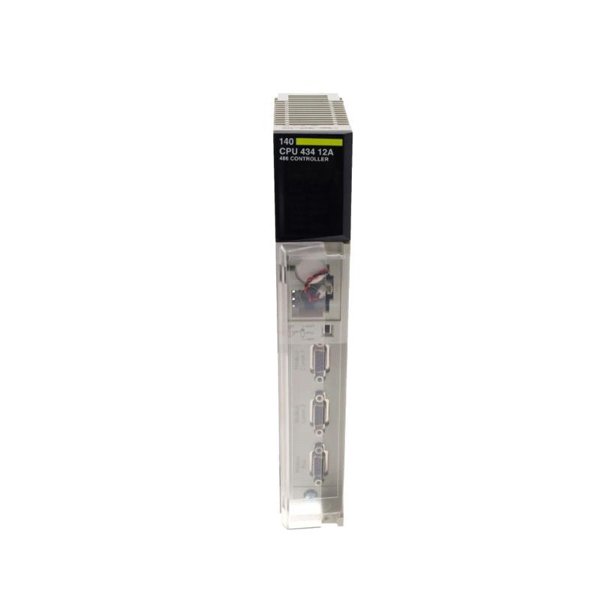

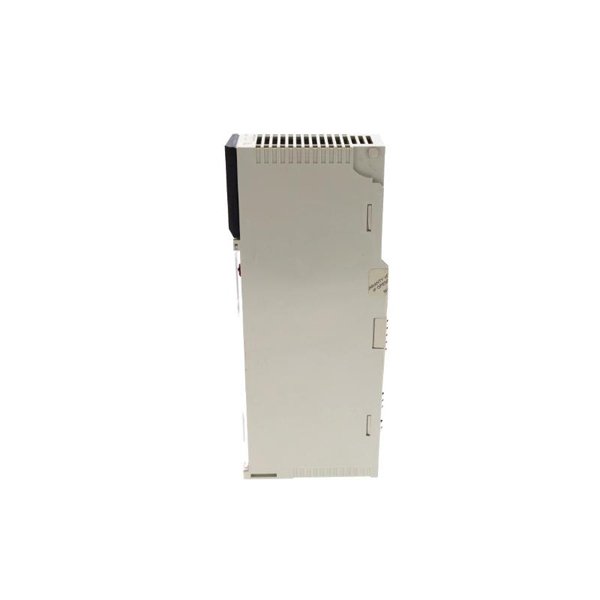

Schneider 140CPU43412A Unity Processor

The Schneider 140CPU43412A Unity Processor is an advanced, high-performance programmable logic controller (PLC) designed for industrial automation and process control applications. As part of Schneider Electric’s renowned Modicon Quantum series, the 140CPU43412A is engineered to deliver exceptional processing power and communication capabilities, making it an ideal choice for both large and small-scale automation systems. This Unity Processor supports a wide variety of applications, from simple control tasks to complex, multi-layered industrial processes.

The 140CPU43412A is built with high-speed processing capabilities, enhanced memory, and extensive I/O support, enabling users to handle complex automation tasks with ease. It is fully compatible with Schneider Electric’s Unity Pro software, providing seamless integration and easy programming for optimal control and monitoring of systems. Additionally, it features advanced diagnostic and troubleshooting capabilities that simplify maintenance and reduce downtime.

Product Specifications

The following table presents the key specifications of the Schneider 140CPU43412A Unity Processor:

Applications

The Schneider 140CPU43412A Unity Processor is suited for a broad range of industrial applications. Below are some common uses:

1. Manufacturing Automation: The processor is widely used in controlling automated production lines, assembly systems, and packaging machines in industries such as automotive, electronics, and food processing.
2. Energy Management: The Unity Processor optimizes control for power plants, substations, and renewable energy systems, enhancing energy efficiency and minimizing downtime.
3. Water Treatment: In water and wastewater treatment plants, the processor manages pumps, filtration systems, chemical dosing, and monitoring to ensure water quality and system reliability.
4. Oil & Gas: The Unity Processor plays a key role in oil drilling, extraction processes, and refining systems, ensuring safe and precise control in complex, hazardous environments.
5. Building Automation: Integration into building management systems for HVAC control, lighting, security, and environmental systems in commercial and residential buildings.
6. Transport Control: Used in controlling and monitoring traffic management systems, railway signaling, and other transportation-related infrastructure.

Advantages

The Schneider 140CPU43412A Unity Processor offers several notable advantages:

1. High-Speed Processing: Equipped with a dual-core processor, the Unity Processor executes tasks with high speed (200 ns per cycle), enabling real-time control in dynamic systems.
2. Flexible Communication: The processor includes multiple communication ports (Ethernet, USB, and serial) and supports a variety of protocols, such as Modbus, Ethernet/IP, and Modbus RTU, ensuring seamless integration with various devices and networks.
3. Large I/O Support: It supports up to 16,000 I/O points, providing scalability for systems of varying sizes, from small installations to large, complex operations.
4. Enhanced Memory Capacity: With 1 MB RAM and 32 MB flash memory, the 140CPU43412A handles complex applications, large programs, and data storage requirements.
5. Robust Operating Range: The processor operates in temperatures from -10°C to 60°C, ensuring reliable performance in harsh industrial environments.
6. Seamless Integration: The processor integrates easily with Schneider Electric’s Unity Pro software, making programming and system configuration straightforward for users.
7. Low Maintenance and Reliability: With advanced diagnostic features, the processor ensures system reliability, reducing downtime and simplifying troubleshooting.
8. Compact Design: The processor is compact (120 mm x 120 mm x 90 mm), making it easy to install even in space-constrained environments.
