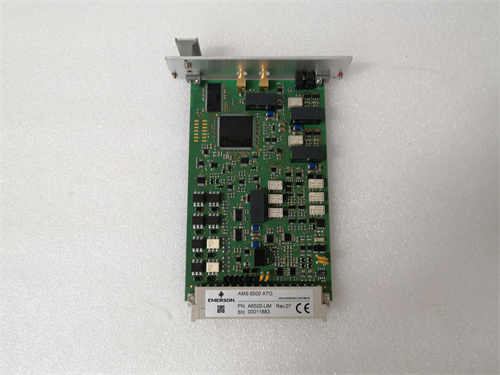

EMERSON A6500-UM Product Details

The A6500-UM universal measurement card is designed for industrial environments and provides high-precision vibration and process monitoring functions.It is equipped with two sensor input channels and supports a variety of sensor types,including eddy current sensors,piezoelectric accelerometers or velocimeters,seismic sensors(electrodynamic),low-frequency bearing vibration sensors,Hall effect sensors and LVDT sensors(need to be used in conjunction with A6500-LC).

Technical Specifications

Sensor Input

2 independent or combined sensor input channels.

Supports eddy current,piezoelectric,seismic,LF,Hall effect and LVDT sensors.

Digital Input and Output

5 digital inputs.

6 digital outputs.

Communication

The measurement signal is transmitted to the A6500-CC Com card via the internal RS 485 bus.

The Com card can convert the signal to Modbus RTU and Modbus TCP/IP protocols for further transmission to the host or analysis system.

The USB interface on the panel can be used to connect to a PC/laptop for communication to configure the card and display measurement results.

Analog output

The results can be output through 0/4-20 mA analog outputs,which have a common ground and are electrically isolated from the system power supply.

Physical characteristics

Dual channel,3U size,1 slot plug-in module.

Compared with traditional four-channel 6U cards,the cabinet space requirement is reduced by half.

Others

Meets API 670 standards.

Hot-swappable modules.

Remotely selectable limit multiplication and trip bypass.

Front and rear buffering and proportional output.

Functional characteristics

High-precision measurement:The A6500-UM universal measurement card uses high-precision sensors and advanced signal processing technology to accurately measure the vibration of the shaft.

Intelligent fault diagnosis:The measurement card has intelligent fault diagnosis function.Through the analysis and processing of vibration data,it can identify potential fault modes and provide fault warning and fault diagnosis information.

Multiple monitoring modes:Supports multiple monitoring modes such as absolute vibration,relative vibration and key phase signal to meet the needs of different equipment and application scenarios.

Easy to integrate and configure:The A6500-UM universal measurement card has good integrability and configuration flexibility,and can be seamlessly integrated with other industrial automation systems to provide a unified monitoring and management platform.

High reliability and stability:As a world-leading provider of industrial automation solutions,Emerson’s products have strict guarantees in terms of quality and reliability.The A6500-UM universal measurement card has undergone a rigorous production and testing process to ensure stable operation in harsh industrial environments.

Application areas

The A6500-UM universal measurement card is widely used in rotating equipment monitoring in industries such as petrochemicals,electric power,and steel.Through accurate measurement and analysis of shaft vibration,it can help users detect potential equipment failures in a timely manner and provide reliable early warning and protection mechanisms to ensure stable operation and safe production of equipment.

Product advantages

Versatility:The A6500-UM universal measurement card integrates multiple functions,including vibration monitoring,fault diagnosis and early warning,etc.,providing users with a comprehensive equipment status monitoring solution.

High precision and stability:High-precision sensors and advanced signal processing technology are used to ensure the accuracy and stability of measurement results.

Easy integration and configuration:Seamless integration with other industrial automation systems reduces the complexity and cost of system integration.

High reliability:Through rigorous production and testing processes,it ensures stable operation in harsh industrial environments and reduces equipment failure rates.
